Txais tos kom yuav lub e2000 / pc rau fc / pc om4 simplex fiber ntau thaj cable 3m nrog peb lub Hoobkas. Raws li ib qho ntawm cov ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb kuj txais tos cov customized txiav txim. Tham tus nqi thiab cov lus hais nrog peb tam sim no.

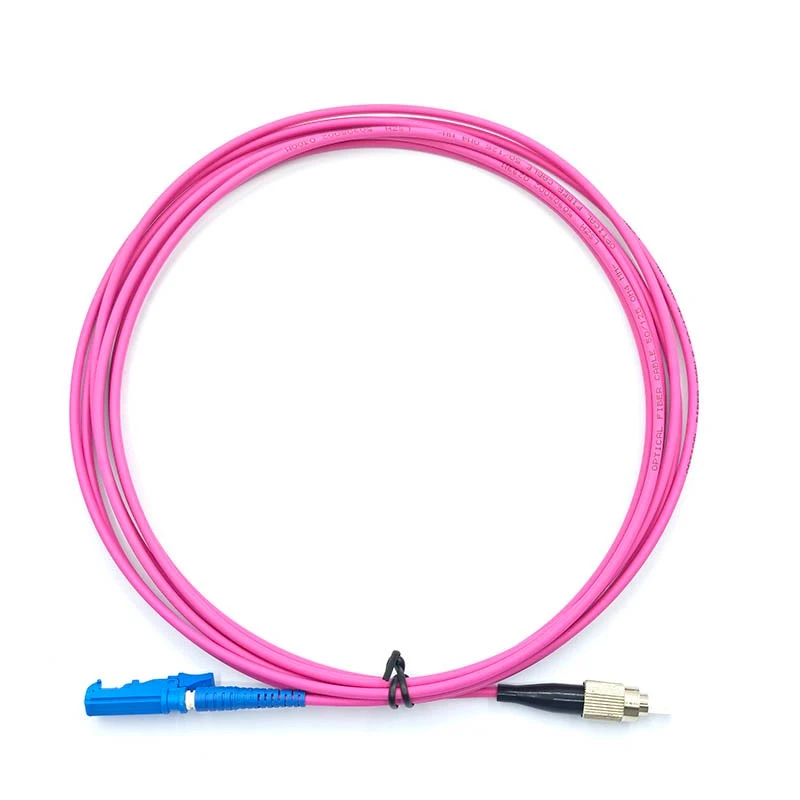

CovE2000 / PC rau FC / PC OM4 simplex fiber ntau thaj cableyog lub Hoobkas-tawm multimode fiber ntau jumper tsim rau luv- nrug siab- nrawm kho qhov muag txuas, khoom siv- mus rau - vaj huam sib luag hloov dua siab tshiab, kuaj qhov muag, thiab kev hloov pauv qub qub. Nws combines ibE2000 / PC connectorntawm ib qho kawg thiab ib qhoFC / PC connectorntawm qhov kawg, sivOM 4 50/125μm multimode fiber ntaunrog amagenta LSZH 3.0mm tsho.
Tsis zoo li tus qauv LC-LC lossis SC-SC thaj qaum, cov khoom no tau muab tso rau hauvhybrid interface thaj qaum. Nws yog qhov tseem ceeb tshwj xeeb tshaj yog thaum ib sab ntawm qhov txuas siv E2000/LSH-chaw nres nkoj sib xws thiab lwm sab tseem cia siab rau FC threaded interfaces. Hloov chaw ntxiv cov adapters ntxiv thiab nce cov ntsiab lus sib txuas, lub cable no muab lub Hoobkas ncaj qha - txiav kev hloov pauv, pab txo qis kev teeb tsa thiab qhov txuas tsis ruaj khov.
FOCC cov ntaub ntawv cov khoom lag luam categorizes thaj cords los ntawm cov ntaub qhwv, sab nraud, hom fiber ntau, thiab kev tsim kho, suav nrog LSZH / PVC sheath xaiv, 0.9 / 2.0 / 3.0mm cable diameters, thiab ntau hom fiber ntau xws li 50/125 thiab 62.5/125. OM4 suav hais tias yog qhov siab -kev ua tau zoo multimode fiber ntau xaiv nrog muaj zog 850nm bandwidth muaj peev xwm.
Cov yam ntxwv tseem ceeb
- Ultra-tsawg nkag poob:Siv high-zoo ceramic ferrules thiab siab-precision polishing, raug ntxig poob qis dua lossis sib npaug li 0.15dB. Tus nqi no nyob deb ntawm TIA tus qauv sab sauv txwv ntawm 0.75dB (cov kab hluav taws xob sib txuas ntawm lub khw yog 0.3-0.5dB), muab cov teeb liab zoo tshaj plaws thiab cov kab sib kis ntau dua.
- Caij nplooj ntoos hlav- hom shutter tiv thaiv:E2000 connector nta ib qho ua tau - nyob rau hauv lub caij nplooj ntoos hlav shutter uas cia li kaw thaum tsis siv, tiv thaiv plua plav thiab khawb thiab tiv thaiv kom txhob laser to thaum lub sij hawm tu, txhim khu kev ruaj ntseg thiab ruaj khov.
- 100% optical kev ua tau zoo kuaj:Txhua txoj hlua txuas tau raug kuaj qhov poob / rov qab tsis zoo thiab 3D kawg-kev tshuaj xyuas lub ntsej muag kom ntseeg tau tias ua raws li IEC 61300 series interchangeability yuav tsum tau (Qib A). Batch los yog cov qauv kuaj cov ntaub ntawv muaj nyob rau hauv cov neeg siv khoom pov thawj.
- High rov poob:Lub ntsaws tau ua kom zoo polishing, ua rau PC-sab rov qab poob ntau dua lossis sib npaug rau 40dB (APC Ntau dua lossis sib npaug li 60dB), txo cov teeb liab cuam tshuam kev cuam tshuam thiab txhim kho qhov txuas kev ntseeg tau.
- Kev khiav hauj lwm kub ntau thiab ntev lifespan tsim:Lub jumper qaum yog resistant rau huab cua puag ncig, nrog rau kev khiav hauj lwm kub ntawm -40℃mus rau +85 degree, thiab tau undergone tshaj 1000 insertion / tshem tawm mus kuaj. Haum rau ntau yam hnyav industrial thiab sab nraum zoov ib puag ncig.
- Ib puag ncig tus phooj ywg nplaim taws-retardant sheath:Ua los ntawm qis- pa taws halogen- cov khoom tsis pub dawb, ua raws li IEC 60332, IEC 60754, IEC 61034 thiab lwm yam nplaim taws- retardant thiab qis- cov qauv pa taws, txo qhov kev pheej hmoo ntawm hluav taws (Source: Unspecified).
- Factory Direct khoom:Cov khoom no yog muag ncaj qha los ntawm cov chaw tsim khoom, tshem tawm cov neeg nruab nrab thiab lawv cov cim. Lub Hoobkas muaj ntau xyoo ntawm OEM kev paub (txij li xyoo 2014) thiab ISO9001 / ISO14001 system ntawv pov thawj, ua kom ruaj khov zoo (Source: Unspecified).
- Customizable kev pabcuam:Txhawb kev hloov kho xim, qhov ntev, thiab ntsaws hom (xws li E2000-LC, FC-APC, thiab lwm yam) kom ua tau raws li qhov yuav tsum tau ua tshwj xeeb. Muaj peev xwm tsim muaj zog, muaj peev xwm ntau lawm, thiab lub sijhawm xa khoom sai (Qhov tseeb muaj peev xwm thiab tus nqi yuav raug sib tham raws li qhov kev txiav txim, Source: Unspecified).
Technical Specifications
| Parameter | Kev piav qhia | Tus nqi / Specification | Test Standard / Tolerance |
|---|---|---|---|
| Fi | Multimode 5 | OFL | IEC 60793-2-10: Cov |
| Txuas | Xaus A: E2000, PC polish Xaus B: FC / PC |
Ua raws li IEC 61754-15 (E2000) thiab IEC 61754-7 (FC) | Insertion poob: Tsawg dua lossis sib npaug rau 0.15dB Rov Los Poob: PC Ntau dua lossis sib npaug rau 40dB |
| Outer Jacket | LSZH, tsawg pa luam yeeb xoom halogen | Xim: Magenta | Daim ntawv no: IEC 60332, IEC 60754, IEC 61034 |
| Cable Diameter | Simplex cable txoj kab uas hla | 3.0 ± 0.1 hli | ASTM D2671 thiab cov kev cai kam rau ua |
| Ntev | Patch qaum ntev | 3.0 ±0.1 m | IEC 6 |
| Inser | Si | Tsawg dua los yog sib npaug li 0.1 | IEC 61300: Ua |
| I | Ib thaj | Tsawg dua lossis sib npaug li 0.30 dB | IEC 61300-3-34 Qib C |
| Rov Los Loss, PC | S | Ntau dua lossis sib npaug li 40 dB Ntau tshaj los yog sib npaug rau 60 |
IEC 61300-3-6: Kev qhia tshwj xeeb |
| Kev khiav hauj lwm Temp | - | -4 | IEC 607: ua |
| Muas | - | Ntau tshaj los yog sib npaug rau 1000 | IEC 6 |
Lub Hoobkas sib txawv
Cov khoom no yog tsim los ntawm high{0}}tech enterprise nrog ntau tshaj 10 xyoo ntawm kev paub nyob rau hauv fiber optic kev sib txuas lus R&D thiab ntau lawm. Headquartered nyob rau hauv Guangzhou, lub tuam txhab boasts ib tug 5,000-square- meter cleanroom thiab tshaj 100 tus neeg ua haujlwm, nrog rau ib xyoos twg muaj peev xwm ntawm ntau pua txhiab fiber optic thaj qaum (tshwj xeeb muaj peev xwm nyob ntawm qhov kev txiav txim loj, qhov chaw tsis tau teev). Cov cuab yeej siv ntau lawm suav nrog cov tshuab fiber ntau optic fusion splicers, siab -kev sib tsoo thiab polishing tshuab, UV / thermal curing qhov cub, 3D kawg-fab interferometers, thiab lub teeb ci- lub zog ntsuas qhov ntsuas qhov poob testers. Tag nrho cov txheej txheem tsim khoom nruj me ntsis ua raws li ISO 9001 kev tswj hwm zoo thiab ISO 14001 ib puag ncig kev tswj hwm. Lub chaw soj ntsuam zoo yog nruab nrog fiber ntau optic microscopes, qhov ntsuas qhov poob, OTDRs, thiab lwm yam cuab yeej los ntsuas cov tub ntxhais fiber ntau thiab thaj qaum kev ua haujlwm. Lub tuam txhab muaj ntau lub Hoobkas soj ntsuam cov ntaub ntawv, daim ntawv pov thawj thib peb, thiab cov neeg siv khoom lub Hoobkas tshawb xyuas cov ntaub ntawv, thiab tuaj yeem muab lub Hoobkas kuaj cov duab thiab daim ntawv pov thawj tsim nyog.
1. Direct Hybrid Termination Hloov Kho Adapter-Raws li kev hloov pauv
Ntau tus neeg yuav khoom daws E2000-rau-FC kev twb kev txuas los ntawm kev siv lub adapter ntxiv lossis hloov pauv. Txoj hauv kev ntawd yuav ua haujlwm, tab sis nws ntxiv lwm qhov kev sib tw. Hauv luv luv OM4 patching txuas, qhov ntev fiber ntau tsis tshua muaj teeb meem; Qhov kev pheej hmoo tiag tiag feem ntau yog los ntawm kev sib kis ntawm lub ntsej muag kawg ntawm lub ntsej muag, tsis zoo adapter tsis zoo, thiab tsis muaj kev sib txuas ntxiv.
Qhov no cable yog tsim los ua ib tug ncaj hybrid jumper, txo qhov tsis tsim nyog interfaces thiab yooj yim rau cable tswj.
2. Connector-Tshwj xeeb los ua ke tswj
E2000 thiab FC connectors yog txawv nyob rau hauv cov qauv. E2000 yuav tsum tau ua tib zoo txuas lub vaj tsev sib dhos thiab kev tiv thaiv kaw. FC xav tau qhov tseem ceeb ntawm kev taw qhia, xov smoothness, thiab ruaj khov ferrule positioning. Kev kho lawv zoo li "ob lub taub hau txuas" tsis txaus rau kev tsim khoom zoo ib yam.
FOCC kev tswj xyuas ntau lawm tsom rau kev sib txuas sib txuas, kev tshuaj xyuas ferrule, kho, polishing, kawg- xyuas lub ntsej muag, thiab kuaj qhov muag. Cov ntaub ntawv kev cob qhia sab hauv kuj tseem hais ntxiv tias thaj chaw tsim khoom suav nrog kev sib txuas sib txuas, polishing, kawg- kev tshuaj xyuas lub ntsej muag, IL / RL kuaj, kev tshuaj xyuas zaum kawg, thiab ntim khoom.
3. OM4 Cable Identity thiab cov khoom sib xws
Rau OM4 cables, kev txheeb xyuas qhov muag yog qhov tseem ceeb vim tias OM3 thiab OM4 feem ntau siv nyob rau hauv tib lub chaw cov ntaub ntawv lossis cov khoom siv ib puag ncig. Lub tsho magenta / violet txo qhov kev pheej hmoo ntawm kev xaiv cov cable tsis raug thaum lub sijhawm teeb tsa, tu, thiab hloov pauv.
FOCC tuaj yeem pab txhawb cov neeg siv khoom- tshwj xeeb luam ntawv, suav nrog hom fiber ntau, ntev, batch naj npawb, daim ntawv qhia kev taw qhia, thiab tus neeg siv khoom tus lej.
4. Muaj zog 3.0mm Jacket rau Kev Rov Ua dua
3.0mm simplex LSZH cable yog tsim nyog tshaj 0.9mm pigtail-style cable thaum lub rooj sib txoos yuav nquag ntsaws, unplugged, routed los ntawm cable managers, los yog siv nyob rau hauv lub rooj zaum xeem. Lub tsho thicker muab kev tiv thaiv zoo dua rau cov fiber ntau thiab txhim kho kev tuav haujlwm.
Rau kev cog lus siab - ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom ntom, FOCC kuj tseem tuaj yeem muab 2.0mm los yog kho cov qauv tshiab, tab sis rau 3m E2000-] rau-FC jumper, 3.0mm yog qhov sib npaug ntawm lub zog thiab yoog raws.
Cov khoom sib piv
| Kev xaiv | Zoo tshaj rau | Kev txwv |
|---|---|---|
| E2000/PC to FC/PC OM4 3.0mm LSZH | Kev hloov pauv ncaj qha ncaj qha, sab hauv tsev luv - ncav cuag ntau hom kev sib txuas, cov cuab yeej ntsuas | Tsis haum rau singlemode APC txuas |
| E2000/PC rau E2000/PC OM4 | Tib -interface E2000 systems | Tsis tuaj yeem txuas FC cov cuab yeej ncaj qha |
| FC/PC rau FC/PC OM4 | FC cov cuab yeej cuab yeej cuab tam lossis cov cuab yeej ntsuas | Tsis muaj E2000 shutter- sab tiv thaiv |
| LC/PC rau LC/PC OM4 | High -Density data center patching | Tsis sib xws nrog E2000 / FC cov chaw nres nkoj tsis muaj adapter |
| 2.0 hli OM4 Jumper | Cov kab hluav taws xob ntau dua | Lub zog tuav qis dua 3.0mm |
| 3.0 hli OM4 Jumper | Zoo dua mechanical tuav thiab routing | Siv qhov chaw ntau dua 2.0mm |
Cov lus nug nquag
Q: Dab tsi yog qhov poob ntawm qhov fiber ntau optic thaj qaum?
A: Peb cov E2000-FC / PC OM4 thaj qaum tau dhau los ua cov kev sim, nrog rau qhov kev nkag tsis zoo ntawm tsawg dua 0.15dB (kev lag luam- ua tau zoo), thiab qhov phem tshaj yog tswj nruj me ntsis hauv 0.3dB. Rov qab poob (PC polishing) Ntau dua los yog sib npaug rau 40dB, kom ntseeg tau tias lub teeb liab attenuation thiab kev xav poob nyob rau hauv cov qauv ntau yam.
Q: Qhov txawv ntawm E2000 thiab FC / PC connectors yog dab tsi?
A: Lub E2000 connector nta lub laub- rub nrawm-plug qauv nrog lub caij nplooj ntoos hlav kaw, ua rau ntsaws thiab tshem tawm yooj yim thiab tsis muaj plua plav; lub FC/PC connector muaj ib tug ntsia hlau - nyob rau hauv xov, muab ntau dua mechanical stability. Ob leeg siv 2.5 hli cylindrical ceramic ferrules, ua kom siab - zoo multimode fiber ntau sib txuas, thiab sib hloov tau hauv cov thawv sib txuas lossis cov khoom siv sib txuas (nco ntsoov tias FC interfaces feem ntau yog siv rau kev kho cabling, thaum E2000 yog tsim rau thaj vaj huam sib luag thiab nquag ntsaws / unplugging daim ntaub ntawv).
Q: Dab tsi yog qhov zoo ntawm LSZH sheath?
A: LSZH (Low Smoke Halogen{0}}Free) cov khoom tso tawm cov pa roj thiab pa taws me ntsis thaum raug hluav taws, tiv thaiv cov neeg ua haujlwm thiab cov khoom siv los ntawm corrosion. Raws li pom: LSZH sheath tsim cov pa taws tsawg dua li cov khoom siv xws li PVC. Yog li ntawd, cov hlua no haum rau lub tsev cabling, cov chaw zov me nyuam cov ntaub ntawv, thiab lwm yam kev siv zoo sib xws, ua tau raws li cov kev xav tau kev nyab xeeb ntawm lub tsev niaj hnub. Lub sheath kuj muaj qhov yooj yooj yim thiab tensile lub zog.
