Customizable MPO fiber ntau 12 tub ntxhais hluas SC ib hom 12color fiber optic pigtail
12 fibers / Coloured pigtail
Nws muaj 12pcs ntawm Simplex pigtail.12pcs yog ib chav tsev. Ua tau raws li Telcordia GR-326 Core thiab ROHS cov kev cai.
Lub connector yuav yog SC, FC, LC, ST, MU, thiab E2000etc.
Lub cable yuav G652D, G655, G657, OM1, OM2, OM3, OM4 thiab lwm yam.
Lub cable loj yuav yog 0.25, 0.9,

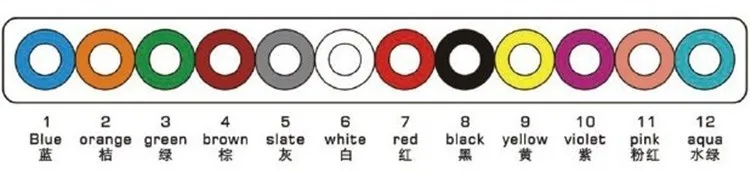

Muaj 12 xim rau koj xaiv.
Ob lub voj voog 250um thiab 900um yog tib yam xim, yooj yim los txheeb xyuas thiab tsim txoj kab.
Tight buffer, tsis nruj tsis. Loose tsis tuaj yeem muaj.
Cov khoom info
Fiber suav | 12 | Fiber hom | 9 / 125μm |
Connector Type1 | SC / UPC | Connector Hom2 | Tsis tuaj yeem |
Fiber hom | SM | Breakout ntev | 0.5m |
Wavelength | 1310 / 1550nm | Cov khoom hnav | PVC / LSZH |
Insertion poob | ≤0.3dB | Kev sib hloov | ≤0.2dB |
Rov qab poob | ≥ 50dB | Kev Tiv Thaiv | ≤0.2dB |
Kev khiav hauj lwm kub | -40 ~ 75 ° C | Cia txias | -45 ~ 85 ° C |
Geometric Specification (tsuas yog kuaj tau 3D interferometer)
Txuas Hluav Taws | UPC kawg-lub ntsej muag | |
SC | 10 ~ 25 hli | |
Apex Offset | ≤ 50 um | |
Fiber Spherical Qhov siab | +/- 50 nm | |
Angular Offset | 8 ° ± 0.2 ° | |
Kev xaiv kev xaiv
FOCC kuj muab tag nrho cov OEM kev pab cuam, xws li cov txuas ntawm fiber ntau, ntev, xim, qib nyhav, kev qhia, khoom, pob lwm yam.

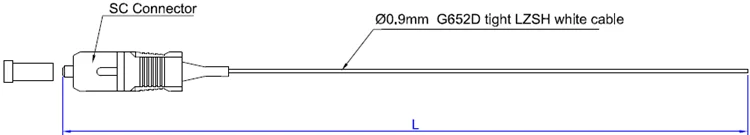

Qhia Txog Lub Cev

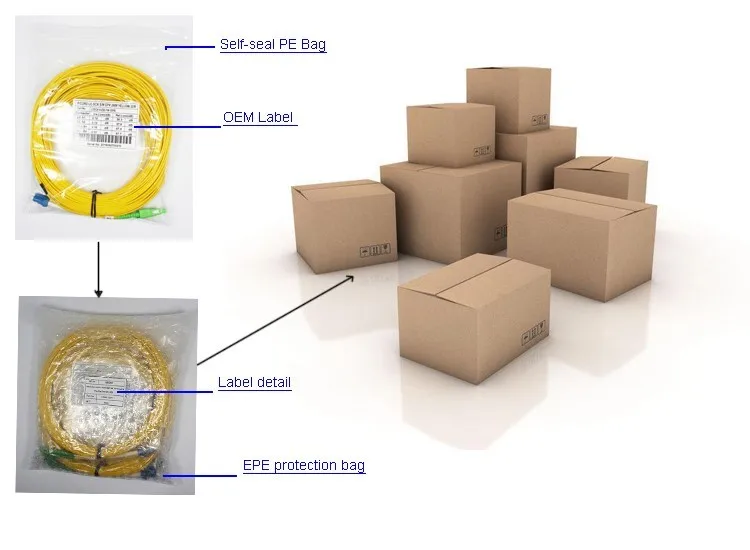

Ntim & Sau Ntawv
Qhov yoojyim coj los tiv thaiv thiab zoo tiv thaiv fiber ntau cable pob tau sau tseg thiab cim los ntawm FOCC ua neej zoo.
Li Cas Xaiv Qhov Txoj Cai Fiber Optic Cable Hom?
Kev Tsim | Fiber Dia. (Μm) | Hom | Hwjchim Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
Singlemode | 9/125 | Singlemode | 2000 Meters | 5km ntawm 1310nm | 5km ntawm 1310nm | 10km ntawm 1310nm | N / A | N / A |

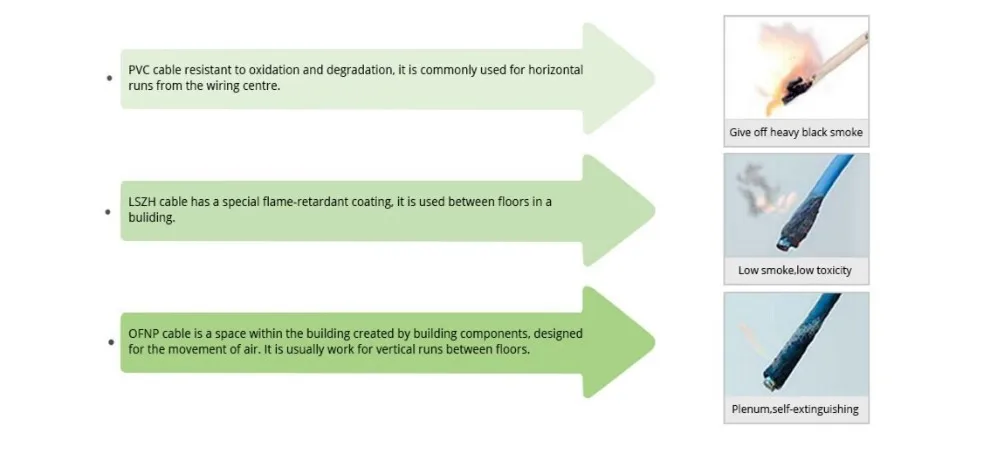

Yuav ua li cas thiaj xaiv tau ntawm PVC, LSZH thiab OFNP?
Fiber kab cab siv tam sim no siv rau cov ntawv hauv tsev zoo li tsev, khoom lag luam, chaw ua si, chaw ua si thiab lwm yam. Seb koj xaiv PVC, LSZH lossis OFNP tsho nyob ntawm seb koj yuav khiav qhov cable.
Cov Lus Nug & Cov Lus Teb
Lus Nug: Qhov sib txawv ntawm cov pa fiber ntau thiab cov nplaim hluav taws muaj dab tsi?
A: Lub ntsiab qhov sib txawv ntawm cov roj pigtail thiab cov jumper fiber nyob rau hauv cov qauv no yog tias cov nplaim hluavtaws ntev yog cov cuab yeej fiber-fiber ntau nrog ob leeg sib txuas, thiab cov roj pigtail yog ib txoj kab uas muaj fiber ntau nrog ib qho txuas ntawm ob qho tag nrho. cable. Tsis tas li ntawd, ib qho ua tiav jumper muaj peev xwm raug txiav mus rau hauv ob lub kaus poom fib ntau.
Lus Nug: Cov kev sib txawv ntawm kev siv fib ntiv luj thiab fiber ntau li cas?
A: Fibre pigtails thiab fiber ntau siv cov kev sib txuas thiab kev sib txuas ntawm kev sib txuas ntawm kev sib txuas ntawm kev sib txuas ntawm network, thiab feem ntau yog siv hauv chav sib txuas lus sib tham thiab cov chaw zov me nyuam. Fibre pigtails kev them nyiaj yug hauv-spliced kev twb kev txuas tshuab hlwb hlau. Nws yuav tsum tau ntsia rau qhov chaw uas nws muaj kev tiv thaiv thiab qhov twg nws xav tau kom tau siv lub kauj voj, ces yog siv cov khoom siv fiber ntau los ua cov khoom siv fiber ntau xws li cov khoom faib tawm ntawm ODFs, cais cov thawv ntawv, thiab cov thawv rau fiber ntau.
Fiber ntau lub cords yog siv los txuas rau fiber ntau optic thaj chaw nres nkoj. Nws tsuas yog txhawb nqa cov kev siv network ntawm kab rov tav thiab cov cuab yeej muab faib chaw thiab ua raws li cov kev xav tau.
