Txais tos muas lub 1/2 / 5/10/20 / 20m g657b3 dawb optic fiber cable lszh khoom fiber ntau optic patchcord nrog peb lub koom haum. Ua ib qho ntawm cov uas ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb kuj txais tos kev txiav txim siab. Ntsib tus nqi thiab cov lus hais nrog peb tam sim no.

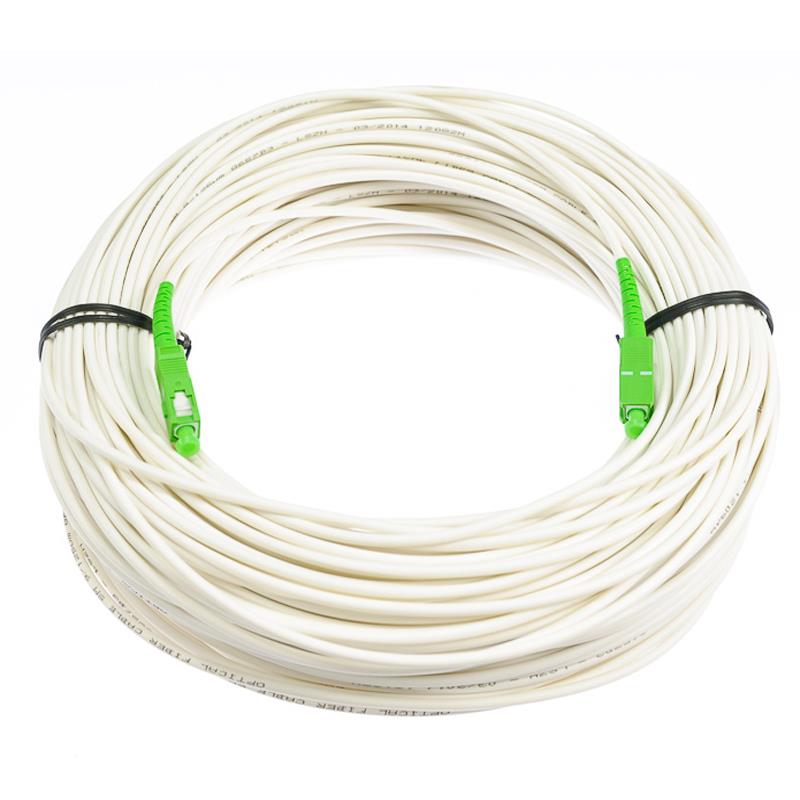

1/2/5/10 / 20M G657B3 dawb fiber ntau fiber ntau lszh khoom fiber ntau optic patchcord

G657B3 cable siv cov khoom LSZH, nws yuav ntau dua los tiv thaiv. qhov txoj kab uas hla ntawm txoj hlua yuav yog 5 hli. lub fiber ntau cable yuav tiv thaiv tau zoo heev thiab yuav tsis tawg thaum wired.

Thiab nws yuav yooj yim dua rau kev faib cov hlua cable thiab xaim kab hauv 1U lub thawv thiab lwm yam khoom.
Nws kub muag hauv khw tam sim no. muaj peev xwm ua tau raws li qhov xav tau ntawm cov teb chaws Europe thiab feem ntau ntawm cov cai

Thaj qaum cov lus qhia

1. Qhov txuas sib txuas: SC / LC / ST / FC / MPO / MU / MTRJ / SMA

2. Hom Fiber: Φ 0.9 / 1.8 / 2.2.0.0 hli,

Fiber hom: Ib hom G652D (G657A1 / G657A2) G657B3

Ntau hom 62.5 / 125 OM1

50/125 OM2 / OM3-150 / OM3-300 / OM4

Txheej Cov Khoom: PVC / LSZH

3. Ntev ntev: tuaj yeem ua ntev npaum li koj txoj cai

4. Kab xim: 2.0 / 3.0 hli: daj / txiv kab ntxwv / aqua / ntshav

0.9 hli: xiav / ntsuab / xim av / xim / dawb / liab / dub / liab / daj / liab / liab / aqua

5. Hom khoom: simplex / duplex / 4 cores / 6 cores / 8 cores / 12cores / 24cores

Parameter	Chav tsev	FC, SC, LC, Armored				ST, MU			MT-RJ, MPO
		SM			Lub hli	SM		Lub hli	SM		Lub hli
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion poob (raug)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2
Rov qab poob	dB	≥ 45	≥50	≥60	≥30	≥ 45	≥50	≥30	≥ 45	≥50	≥35
Kev khiav haujlwm wavelength	nm	1310, 1550				1310, 1550			1310, 1550
Txauv kev hloov	dB	≤0.2				≤0.2			≤0.2
Kev Tiv Thaiv	dB	≤0.2				≤0.2			≤0.2
Kev khiav hauj lwm kub	° C	-40 ~ 75				-40 ~ 75			-40 ~ 75
Cia txias	° C	-45 ~ 85				-45 ~ 85			-45 ~ 85
Cable inch	hli	Φ3.0, Φ2.0, Φ0.9				Φ3.0, Φ2.0, Φ0.9			Φ3.0, Φ2.0, Φ0.9

Tseem ceeb nta

· Tsis ntxig tso qis thiab qaum rov qab qhia tsis tau

· Zoo sib xws

· Zoo Durability

· Kub siab ruaj khov

· Ua raws li IEC, TIA / EIA, NTT thiab JIS specifications

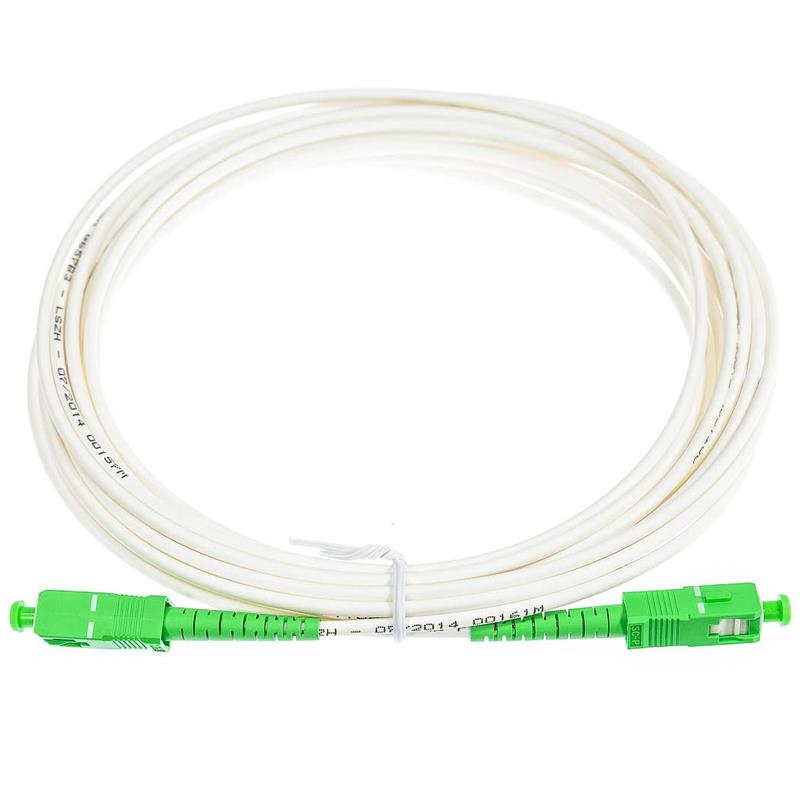

HTB1LAFUlIuYBuNkSmRyq6AA3pXaR2 Factory-Price-10m-G657B3-SC-APC-SC

Cov kev siv ntawm optical fiber ntau lub nplhaib

1. CATV

2. Cov twj hu ua Active Device;

3. Cov tes hauj lwm hauv Telecommunication;

4. Metro;

5. Networks hauv cheeb tsam;

6. Cov ntaub ntawv xov xwm ua haujlwm;

7. Cov khoom kuaj;

8. Kev txhim kho tom ntej;

9. Cov Chaw Hauj Lwm Thaj Chaw

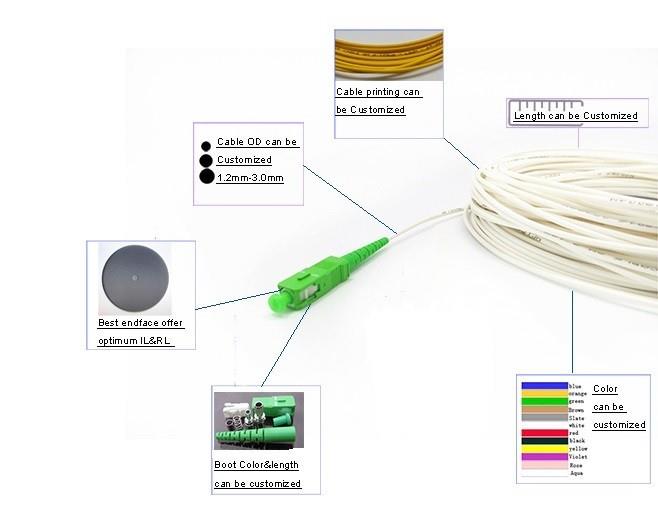

HTB19LVUNVXXXXXJXFXXq6xXFXXX2

Cim npe nrov: 1/2/5/10 / 20m g657b3 dawb optic fiber cable lszh khoom fiber ntau optic patchcord, Tuam Tshoj, chaw muag khoom, lwm tus neeg, manufacturers, quotation, customized, nqe, yuav

1/2/5/10 / 20M G657B3 Dawb Optic Fiber Cable Lszh Khoom Fiber Optic Patchcord
