fais fais fab kub qhuav kev twb kev txuas sc / apc ceev khoom siv

Fiber Optic Fast Connector tsim los rau FTTH yog ib tiam tshiab ntawm cov qauv siv fiber ntau siv los ua ke. Nws muaj peev xwm qhib kev qhib dav thiab Pre-cam khwb yam khoom, nws qhov kev kho qhov muag thiab cov khoom siv sib xyaw ua tau raws li tus qauv nruab nrab fiber ntau connector.Nws yog tsim rau kev ua haujlwm zoo thiab kev ua haujlwm siab rau installation.the qauv ntawm crimping txoj hauj lwm yog tus qauv tsim, thiab yuav tsum tsis gluing, polishing tsis muaj consumables.adopted fiber ntau pre-ntsia tus qauv, thiab yooj yim rau kev teb installation. ft

ftth-fiber-hot-melt-quick-connection-sc1 th

Specification

Yam khoom	Kev Ntsuas
Daim ntawv thov	FTTH nyob sab hauv tsev & sab nraum zoov
Optical fiber ntau	125μm (657A & 657B)
Tight tsis sib npaug	250μm
Fiber hom	Ib hom
Cov sijhawm ua haujlwm	Txog 100s (tsis muaj cov hlais me)
Insertion poob	≤ 0.2dB (1310nm & 1550nm)
Rov qab poob	≤ 50dB
Txoj hlua khi ntawm lub hlab ntaws	> 5 N
Txoj hlua khi ntawm lub cev nqaij daim tawv	> 10 N
Tensile zog	> 50 N
On-line tensile zog (20 N)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Mechanical ntev (500 zaug)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Kev xeem poob-tawm (qhov siab tshaj 4m, ib zaug rau ib qho kev coj, lig 3 zaug)	Δ IL ≤ 0.5dB Δ RL ≤ 5dB
Siv kub	-40 ~ + 75 ° C

& lt; img src = "// sc01.alicdn.com/kf/HTB1WxsiQXXXXXcIXFXX760XFXXX3/223435977/HTB1WxsiQXXXXXcIXFXX760XFXXX3.png" style = "dav: 427.807px; qhov siab: 220px; margin-left: -14px; margin-top: 0px; & gt;

Nta

1.Yuav ua haujlwm muaj peev xwm txuag tau sijhawm
2.100% tsim nyog, txo cov nqi txij nkawm.
3.Easy kom sib sau nrog cov neeg kho tshuab splice & tsis muaj polishing
4. Qhov siab tshaj plaws, qhov chaw qis qis, siab rov qab poob

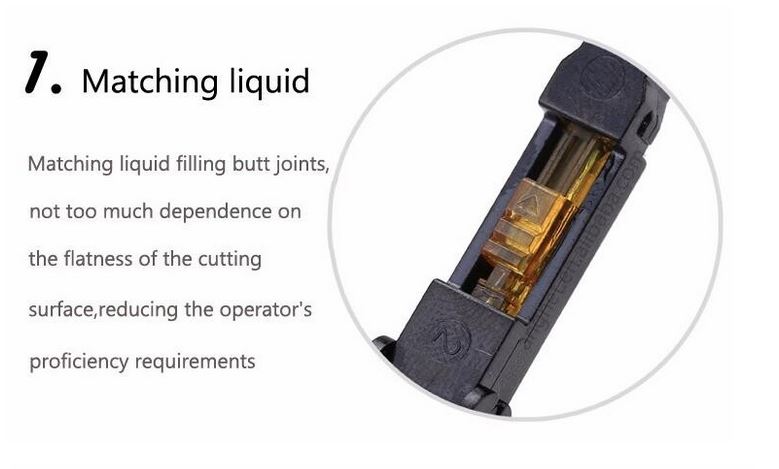

Sc/apc Fast Equipment-2

Sc/apc Fast Equipment-3

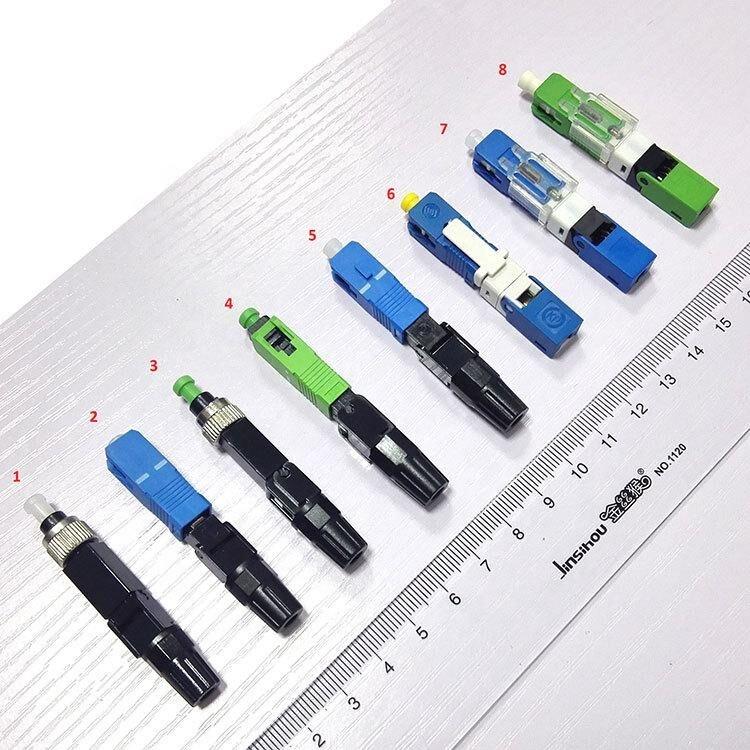

SC-APC-FTTH-optical-fiber-fast-connector

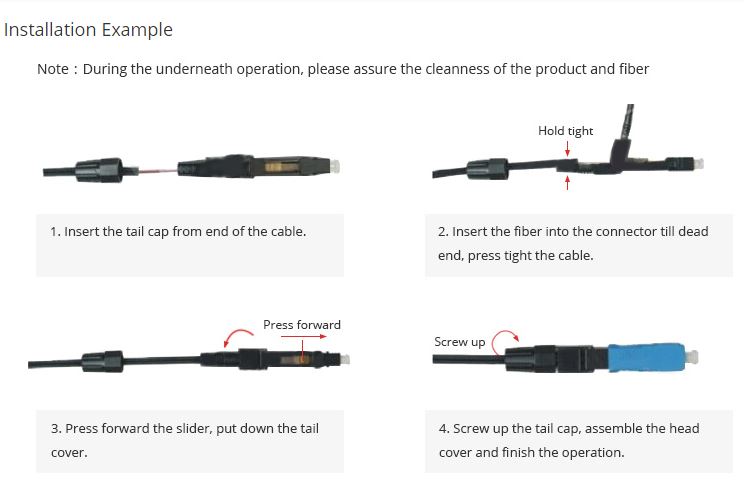

Nruab ib qho piv txwv

Ntim

Cim npe nrov: fais fais fab kub qhuav kev twb kev txuas sc / apc ceev khoom, Suav teb, koom xwm, lwm tus neeg, manufacturers, quotation, customized, nqe, yuav

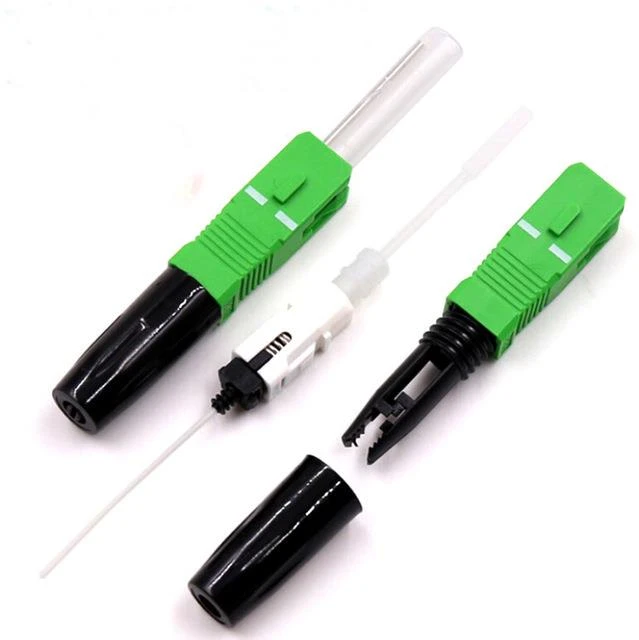

Ftth Fibre Kub Txias Kev Txuas Hluav Taws Xob Yooj Yim Txuas Kev Tshawb Fawb
