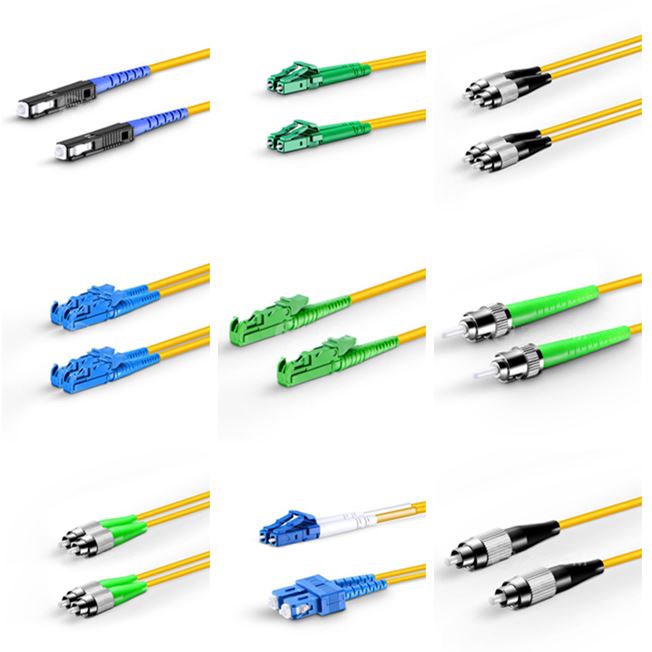

Sab Hauv Tsev Fiber Jumper Cables
FOCC muab cov kab lus ib leeg thiab multimode, yooj yim thiab duplex Sab Hauv Tsev Fiber Jumper Cables ua kom nruj sab hauv cov lus qhia tshwj xeeb uas tshaj li cov qauv kev lag luam lees paub. Fiber jumper cov rooj sib txoos yog siv ntau yam ntawm cov cab kuj sib txuas thiab thaj chaw ntiag tug. Tus yuam sij rau kev tsim cov hluav taws xob fiber ntau kev sib tw yog tswj cov polish radius, apex offset thiab fiber undercut. FOCC tswj nws cov txheej txheem tsis siv neeg polishing kom dhau qhov kev lag luam tshwj xeeb rau kev nkag thiab rov qab poob, kom ntseeg tau tias cov khoom lag luam zoo tshaj plaws.
Kev txiav tawm yog tsim thiab sim rau Telcordia GR-326 FOCC® FiberDeep® Daim Ntawv Cog Lus: 0.2 dB kev nkag mus tsis tau lossis tsawg dua, tshaj li tus qauv kev lag luam Txhawb kev lag luam txheem ib qho sib txuas ib leeg thiab multimode txuas Singlemode thiab multimode thiab hybrid cables muaj Txhua lub ntsej muag fiber ntau yog tus kheej npog nrog lub tsho sab nraud ntxiv rau kev tiv thaiv ntxiv Ntau cov tsho muaj ntau thiab tsawg rau txhua daim ntawv thov, 3 hli, 2 hli, 1.6 hli, 1.2 hli, 900 μm Riser thiab Plenum rated tsho kev xaiv muaj Muaj nyob rau hauv yooj yim, dual-round thiab dual zip-qaum kev teeb tsa Kev sib txuam ntawm lub tsho tsim tsim minimizes cable teeb tuaj Kev lag luam cov ntsiab lus dhau los suav nrog ST, SC, FC, LC (nug tus sawv cev FOCC rau lwm cov khoom siv txuas) Sab Hauv Tsev Fiber Jumper Cov Khoom Siv Hluav Taws Xob muaj cov kev daws teeb meem kev lag luam rau deploying fiber hauv txhua lub network kho qhov muag Kev tiv thaiv ib puag ncig, ib puag ncig poob qis, ua rau tsis pom kev rov qab Txhua lub rooj sib txoos 100% kuaj Kev Qhia Txog Kev Kawm
Specification Kev piav qhia Qhov loj me thiab hom Ibmode thiab multimode Fiber ntau suav Simplex (1-fiber) thiab duplex (2-fiber) Tsho OD 900 μm, 1.6 hli, 2.0 hli, 3.0 hli Cable Hom Sab hauv tsev txaus ntshai, Plenum sab hauv tsev Cov Txuas Txuas Hom SC / UPC, SC / APC, LC / UPC, LC / APC, FC / UPC, FC / APC, ST / UPC Kev khiav hauj lwm kub -40 ° C rau 85 ° C (-40 ° F rau 185 ° F) Yam tsawg kawg nkaus Qhov Tshwj Xeeb Cov Lus Qhia rau Kev Ua Haujlwm Ib Leeg Sib Txuas
Connector Hom Ferrule Khoom Siv Ntau hom Ins. Poob Raug (dB) Max Ins. Poob (dB) Min. Ret. Poob (dB) ST Tej Hub UPC 0.15 0.20 55,00 SC Tej Hub UPC 0.15 0.20 55,00 FC Tej Hub UPC 0.15 0.20 55,00 LC Tej Hub UPC 0.15 0.20 55,00 SC Tej Hub APC 0.15 0.20 65.00 FC Tej Hub APC 0.15 0.20 65.00 LC Tej Hub APC 0.15 0.20 65.00 Yam tsawg kawg nkaus Qhov Tshwj Xeeb Cov Lus Qhia rau Kev Ua Haujlwm Txuas Multimode
Connector Hom Ferrule Khoom Siv Ntau hom Ins. Poob Raug (dB) Max. Ins. Poob (dB) ST Tej Hub PC 0.25 0.50 SC Tej Hub PC 0.25 0.50 FC Tej Hub PC 0.25 0.50 LC Tej Hub PC 0.25 0.50 Nta & Txiaj Ntsig
Kev ntseeg siab
Kev Tiv Thaiv
Kev Nkag
Kev nqis peev
