MPO Connector Family - Multifiber Push-On
Tus Txheej Txheem Feem Ntau Fiber Optic Connectivity
MPO jumper | Nta thiab Cov Nyiaj Hli Ultra-me me thiab cov fibers ruaj, zoo tagnrho rau ib ntau qhov chaw nruab kev: • Txhim khu kev ruaj siab, kev ua tau zoo interconnections ○ Ua kom muaj fiber ntau ntawm fiber ntau cov txee thiab cov duab hluav taws xob ○ Ua kom zoo thiab simplifying fiber ntau ○ Nws qis dua qhov chaw tswj kev lag luam • Kev ntsuam xyuas Telcordia GR-1435-CORE • ANSI / TIA / EIA-604-5-199 FOCIS 5 raws txoj cai | • Cauj thiab yooj yim txuas nrog thawb-on / rub tawm tawm latching mechanism • Hloov poob qis thiab kev pom zoo • Kev them nyiaj yug lub siab ceev • Kev pab cuam raws li engineering txhawb rau ua kom tag nrho cov kev xav tau ntawm cov kev xav tau ○ Yeej pab rau kev tsim tshwj xeeb thiab configurations • Kev daws OEM |
| Daim ntaub ntawv OFS muaj ntau txoj kab ntawm high-density MPO multifiber connector khoom, Txhim khu kev ruaj siab high-density interconnections rau: • Khoom Siv Interconnections • Cov tes hauj lwm sib txuas lus • Broadband / CATV networks • Kev sib txuas lus tes hauj lwm, nrog rau cov khoom siv high-bandwidth • Interconnections rau kev kho qhov muag transmitters thiab receivers | Cov Lus Qhia Khoom OFS muaj ntau txoj kab ntawm high-density MPO multifiber connector khoom, nrog rau jumpers, fanouts, pigtails thiab connectorized cable. Thaum koj xav tau txoj kev kawm siab fiber optic txuas rau kev daws teeb meem, saib mus rau OFS tsev neeg ntawm cov khoom uas nthuav tawm MPO Connector. Tsawg poob hom ib hom MPO connectors xa cov kev ua tau zoo thiab kev cia siab rau hauv hnub no 抯 demanding high-speed broadband thiab cov ntaub ntawv tes hauj lwm. Multimode LaserWave? MPO qis qis thiab ntxoojyim yog tsim los txhawb kev ua haujlwm ceev, luv-luv, cov chaw khaws ntaub ntawv daim ntaub ntawv. MPO Connector, nrog rau nws cov kev paub txog push-on / pull-off insertion tso cai, qhia zoo ib yam thiab repeatable interconnections nrog mus txog rau 48 fibers nyob rau hauv 0.7? x 0.4? hneev taw. MPO khoom tsev neeg muaj nyob nrog 8, 12, 24 thiab 48 txuas nrog fiber ntau ntawm cov khoom qab zib Ribbon, nruj-buffered ribbon thiab cordage, thiab muaj xws li tus qauv adapters. Lwm hom fiber ntau suav tau yog thaum thov. |

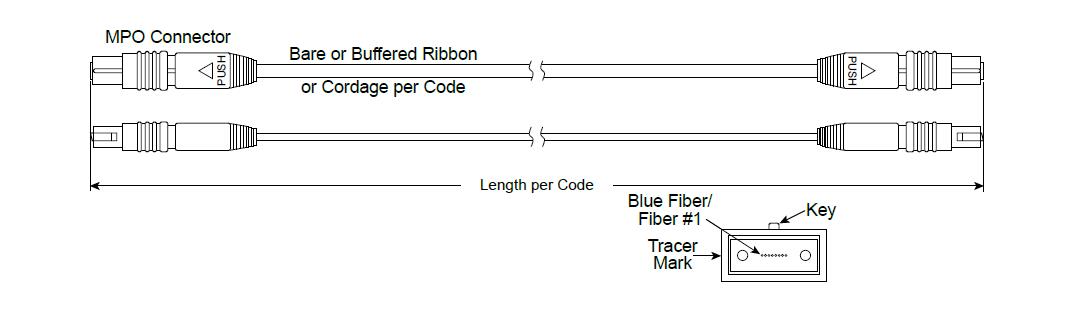

MPO Jumpers & Pigtails
| MPO dhia thiab pigtails muab kev sib txig sib luag hauv ib qho chaw me me. Tsawg poob ib hom jumpers xa superior poob kev ua haujlwm rau kev thov, kev siv ceev ceev. Low-Loss MPO 8-Fiber Jumper MPO dhia thiab pigtails muab kev sib txig sib luag hauv ib qho chaw me me. Tsawg poob ib hom jumpers xa superior poob kev ua haujlwm rau kev thov, kev siv ceev ceev. |
MPO Jumper Specifications | ||||
| Txuas Hom | Ferrule / Polish | Poob (Raug) | Poob (Max) | Rov Qab Los (Min) |
| MPO | Ib Hom 8-Fibre APC | 0.16 dB | 0.35 dB | 55 dB |
| MPO | Multimode PC | 0.10 dB | 0.35 dB | 20 dB |
MPO Adapters
FOCC muab cov qauv MPO Adapters, packaged tus kheej los yog
nyob rau hauv ntau qhov ntau ntawm 100.
 |  |
MPO Fanouts
FOCC MPO fanouts muab kev tso siab, kev hloov siab zoo |  |
MPO Kev Hais Lus Qhia
| Txuas Hom | Ferrule / Polish | Poob (Raug) | Poob (Max) | Rov Qab Los (Min) |
| MPO | Ib hom APC | 0.16 dB | 0.35 dB | 55 dB |
| Tib Fibre | Ib hom-Hom UPC | 0.15 dB | 0.30 dB | 55 dB |
| Tib Fibre | Ib hom APC | 0.15 dB | 0.30 dB | 65 dB |
Yog tias koj xav muab cov khoom saum toj no, thov hu los yog xauj ntawm FOCC. Peb yuav muab tsis tau cov kab mob ntawm cov kab mob xwb, tiam sis kuj muaj kev cai cables raws li koj xav tau.
