● Cov Lus Qhia:
FOCC 1 x N Planar Lightwave Circuit (PLC) Splitter li ABS Box nrog ib hom G.657.A1 fibers nrog 1 x SC / PC tswv yim thiab mus txog rau 64 x LC / PC outputs, splitting los yog phiajcim ntawm qhov kho qhov muag ntsig txog cov ntaub ntawv kis tau ntawm ntau tus neeg koom ntawm ib qho khoom siv fais fab.
● Ntau Lub Nruab Nrab, Tsawg Txij Nkawm:
Lub FOCC 1xN PLC Splitter ABS Box xa ib lub fwj rau ob peb lwm cov fibers, thiab qhov rov qab ua tau yog. FOCC 1 x N Planar Lightwave Circuit Court (PLC) Splitter ABS Box ua haujlwm nrog ib qhov yuam kev tsawg thiab ib qho kev sib txeeb sib npaug ntawm tag nrho cov wavelength li ntawm 1260nm txog 1650nm. Vim yog kev siv lub FOCC 1 x N Planar Lightwave Circuit (PLC) Splitter, tsis muaj qhov yuav tsum tau ntxiv zog, uas ua rau kom muaj kev ruaj ntseg ntawm Splitter ua qhov tsis tsim teeb meem.
● Qhov Kev Tso Tus Zog Zoo:
FOCC PLC Splitter muaj ib qho nqi ntawm 0.4db ib mile twg, tsis tshua muaj kev tawm tswv yim (Kev Poob Lag Luam) thiab qhov siab rov qab poob (rov qab poob). Ntxiv optimization ntawm qhov poob rov los ntawm kho tus txhuam (UPC los yog 8 ° APC) tau. Tsis tas li ntawd, qhov khoom ua tau zoo ib qho kev tawm suab ntawm tsuas yog 3dB rau txhua txhua 1: 2 phua. PLC Splitter feem ntau siv Fiber Network rau FTTH Networks, Fiber Broadband (FTTX) tes hauj lwm, Cov Kev Sib Cais Zoo Nruab Nrab (PON), Gigabit Cov Kev Sib Cais Zoo Nruab Nrab (GPON), Chaw Hauj Lwm Hauv Zos (LAN) thiab Cable TV (CATV) ) kev sib txuas los yog cia rau qhov muag yooj yim kho qhov muag.
● Tshaj Khoom Zoo Tshaj Plaws:
Kev txo cov kev pabcuam tshwjxeeb tshwjxeeb cov khoom muaj npe los ntawm cov paub lag luam zoo xws li Corning, Fujikura lossis YOFC yog siv cov txheej txheem ntawm FOCC 1 x N Planar Lightwave Circuit (PLC) Splitter ABS Box-Solutions. Tag nrho cov hnab ntsaws yog tsim nrog qev txhim kho zirconia ceramic ferrule ntawm hom lag luam xws li Amphenol, Pob zeb Diamond, Nissin Kasei los yog Reichle & De-Massari thiab ua neej kom txog li 1500 mating cycles.
● Kev tsis pub lwm tus neeg muaj kev cuam tshuam:
FOCC 1 x N Planar Lightwave Circuit (PLC) Splitter raug soj ntsuam tom qab tsim muaj cov tshuaj tua kab mob thiab qhov Optical-Time-Domain-Reflectometry (OTDR) los xyuas kom zoo. Ib qho kev ntsuas kev ntsuas ntawm qhov kev poob thiab kev poob nqis yog muaj nrog txhua xa khoom FOCC 1 x N Planar Lightwave Circuit Court (PLC) Splitter. FOCC 1 x N Planar Lightwave Circuit (PLC) Splitter ABS Box-Solutions ntsib Telcordia GR-326 tseev-Core 4.4.
● Yam Khoom:
| Qauv Zauv | SC 1x32 PLC splitter |
Hom | ABS Fiber Splitter |
Fiber ntau | 0.9 hli, 2.0 hli, 3.0 hli |
Fiber hom | Ib Hom Tsawg Ib Fiber Ntau Hauv |
Pob Ntes | 20.0 * 15.0 * 10.0 (cm) |
Phaus nyhav / Pob | 0.5 (kg) |
Txuas hom | SC / UPC |
Cable xim | Yellow |
● Kev Kho Mob:
Table 2 - 2 × N PLC Splitter
Cov lus qhia | 2 × 2 | 2 × 4 | 2 × 8 | 2 × 16 | 2 × 32 | 2 × 64 | 2 × 128 |
Kev khiav haujlwm Wavelength | 1260 ~ 1650 | ||||||
Fiber hom | SMF-28e G.657A1 los yog Neeg Txiav Txim Siab | ||||||
Insertion poob (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 | 24.5 |
Poob Uniformity | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
Ncov Qaum Taws Xeeb (Polarization) | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 | 0.4 | 0.4 |
Rov Qab Los (dB) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
Kev tshawb nrhiav | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
Wavelength tsis muaj mob | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Kub Stability | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Kev Kub Kev Kub Lub Cev | -40 ~ 85 | ||||||
Cia Kub | -40 ~ 85 | ||||||
Ntaus Ntaus | 40 × 4 × 4 | 50 × 4 × 4 | 50 × 4 × 4 | 50 × 7 × 4 | 60 × 7 × 4 | N / A | N / A |
Module Dimension | 100 × 80 × 10 | 100 × 80 × 10 | 100 × 80 × 10 | 120 × 80 × 18 | 140 × 115 × 18 | 140 × 115 × 18 | 140 × 115 × 18 |
Mini-Module Dimension | 60 × 7 × 4 | 60 × 7 × 4 | 60 × 7 × 4 | 60 × 12 × 4 | 80 × 20 × 6 | N / A | N / A |
● Cov Lus Qhia:
(1) High Environmental Stability
► Tsis tshua muaj qhov poob qis, tsis tshua muaj polarization kev poob, qis qis dua, thiab zoo sib xws;
(2) Zoo Siv Tau Zoo
► Teeb ntawm lub teeb tsis rhiab rau wavelength, thiab nws muaj peev xwm ua tau raws li kev xav tau ntawm ntau lub wavelengths;
(3) Compact Structure
► Loj me me, nws tuaj yeem raug ntsia ncaj qha rau ntau lub box thiab tsuas yog siv me ntsis chaw;
(4) Khoom Plig Khoom Txaus
► Kev tsim thiab ntim yog txaus los xyuas kom meej cov khoom zoo.
● Rhiav Kev Ntsuam Xyuas:

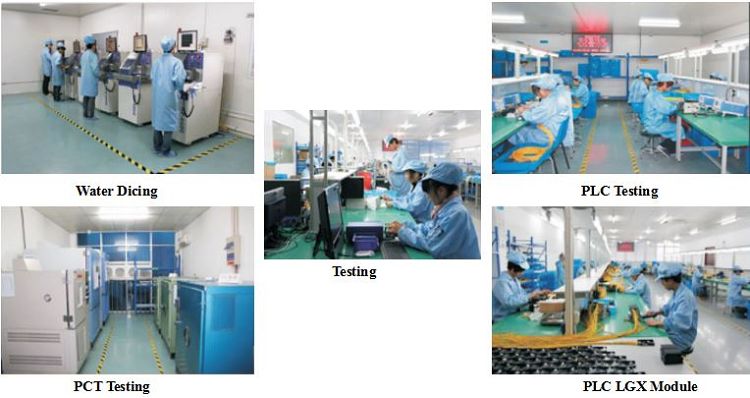

Ntawm tag nrho Rhiav thaj tsam ntawm ntau tshaj 12,000 square metres, plua plav-dawb rhiav chav pov hwm 500 square meter thaum lub ploj mus pov tseg chav 6.500 square metres.
● PLC Ntau Tsev Neeg:
Cov Ntaub Ntawv Suav:
PLC Splitter
FPS | Chaw Txuas Lus Nruab Nrab | Lus tawm Fiber Hom | Lus tawm Fiber Ntev | Output Fiber Hom | Tso Tawm Fiber Ntev | Tswv Yim Txuas Lus | Txuas Txuas Hluav Taws Xob |
F = FOCC | 102 = 1x2 | B = 250um Fare Fiber | 10 = 1.0m | B = 250um Fare Fiber | 10 = 1.0m | 0 = Tsis muaj | 0 = Tsis muaj |
P = PLC | 104 = 1x4 | L = 900um Loose Tube | 15 = 5.0m | R = Ribbon Fibre | 15 = 5.0m | 1 = FC / UPC | 1 = FC / UPC |
S = Splitter | 108 = 1 x 8 | T = 900um Tight Buffer | 20 = 2.0 hli | F = Fanout Lub Thawv Nrog Rau Cov Khoom Txhaum Cai 900um | 20 = 2.0 hli | 2 = LC / APC | 2 = LC / APC |
116 = 1 x 16 | 3 = SC / APC | 3 = SC / APC | |||||
........ | 4 = SC / PC | 4 = SC / PC | |||||
202 = 2x2 | ........ | ........ | |||||
216 = 2x16 | |||||||
264 = 2x64 | |||||||
........ |
Txais tos yuav tus 1x32 plc fiber ntau splitter singlemode g657a splitter splice / pigtailed abs module, 2.0mm 3.0mm sc connector nrog peb lub Hoobkas. Ua ib lub tuam txhab ua lag luam thiab cov muag khoom nyob rau hauv Suav teb, peb kuj txais tos kev txiav txim siab. Ntsib tus nqi thiab cov lus nrog peb tam sim no.
