Carrier-Qib Singlemode Fiber Pigtail rau FTTH, PON thiab qis-Reflection Optical Networks

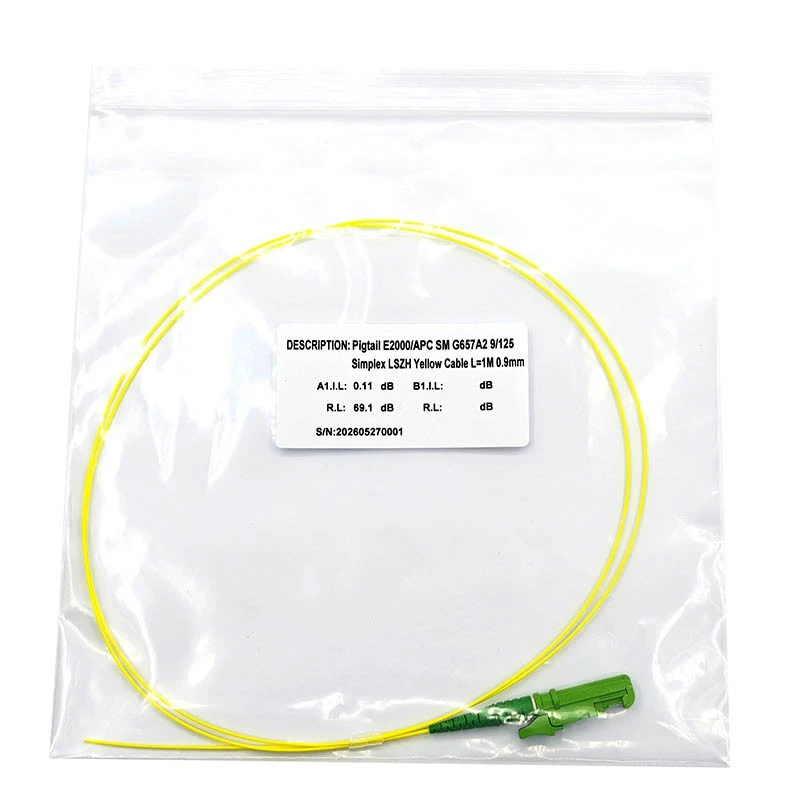

E2000/APC SM G657.A2 Simplex LSZH Yellow Fiber Optic Pigtail yog tsim los rau cov cab kuj nkag tau rau hauv tes hauj lwm, FTTH deployments, GPON thiab XGS-PON infrastructure, CATV systems, thiab lwm yam kev xav txog -sensitive optical kis ib puag ncig.
Featuring E2000/APC connector, khoov-insensitive G657.A2 singlemode fiber ntau, kev tsim kho yooj yim, thiab LSZH (Low Smoke Zero Halogen) lub tsho, cov pigtail fiber ntau no muab cov kev daws teeb meem zoo rau fiber ntau faib thav duab, optical terminal thawv, splice cov khoom sib txuas, thiab.
Lub kaw lus kaw kev sib txuas ntawm E2000 connector pab tiv thaiv lub ntsej muag kawg ntawm lub ferrule los ntawm kev sib kis thaum sib txuas, ua rau nws tshwj xeeb tshaj yog tsim rau siab - ntom fiber ntau faib tshuab thiab tus neeg teb xov tooj- qib network ib puag ncig qhov kev sib txuas huv thiab ntev - lub sij hawm kev ntseeg siab yog qhov tseem ceeb.
Khoom Muag Khoom Muag
Carrier-Qib Fiber Pigtail rau Critical Optical Infrastructure
Cov khoom no yog positioned rau telecom tswv, broadband muab kev pab cuam, network integrators, thiab fiber infrastructure neeg cog lus uas yuav tsum tau ruaj khov kho qhov muag kev ua tau zoo, tsis tshua muaj -reflection connectivity, khoov- insensitive routing, thiab txhim khu kev qha connector tiv thaiv.
Piv nrog cov pa pigtails, E2000 / APC G657.A2 pigtail muaj ob peb yam tseem ceeb:
- Integrated E2000 tsis siv neeg kaw kev tiv thaiv
- APC 8℃angled polish rau kev xav txog -sensitive applications
- G657.A2 khoov-sensitive fiber ntau rau qhov chaw- txwv kev teeb tsa
- LSZH lub tsho haum rau sab hauv tsev thiab kev nyab xeeb- ib puag ncig nco qab
- Kev lag luam- qauv tsho daj rau singlemode fiber ntau txheeb xyuas
Cov yam ntxwv tseem ceeb thiab cov txiaj ntsig
E2000 Tsis Siv Neeg Shutter Connector rau Enhanced End -Kev Tiv Thaiv ntsej muag
Ib qho ntawm cov yam ntxwv ntawm E2000 connector yog nws txoj kev kaw lub kaw lus tsis siv neeg.
Thaum lub connector yog unplugged, lub shutter cia li npog lub ceramic ferrule kawg lub ntsej muag, pab txo kom txhob muaj plua plav, roj, thiab cov pa paug paug uas tuaj yeem cuam tshuam kev ua haujlwm ntawm qhov muag.
Qhov kev tsim no tshwj xeeb yog muaj txiaj ntsig hauv:
- High -Density ODF systems
- Central chaw ua hauj lwm thiab telecom chaw
- FTTH nkag mus rau network
- CATV headend installations
- Reflection-sensitive optical transmission systems
- Cov tes hauj lwm uas yuav tsum tau saib xyuas ntau zaus lossis rov txuas dua
Connector contamination tseem yog ib qho ntawm feem ntau ua rau muaj kev nkag mus ntxiv, degraded rov qab poob, thiab kev cuam tshuam kev pabcuam. Los ntawm kev pab tiv thaiv lub ferrule nto, E2000 shutter mechanism pab txhawb kev txhim kho kev sib txuas ruaj khov thiab txo cov kev tu ncua.
Nco tseg: Cov ntsiab lus tshwj xeeb ntawm kev tsim kho lub kaw lus thiab cov khoom txuas tshwj xeeb yuav tsum raug txheeb xyuas tawm tsam cov chaw tsim khoom cov ntaub ntawv.
APC 8℃Angled Polish rau qis-Reflection Optical Links
Lub pigtail siv APC (Angled Physical Contact) polished ferrule featuring 8-degree angled kawg lub ntsej muag.
Tsis zoo li UPC connectors, APC polishing redirects reflected optical signals deb ntawm lub fiber core, pab txo qhov cuam tshuam ntawm rov qab xav txog ntawm rhiab kis systems.
Kev sib txuas APC feem ntau yog siv rau hauv:
- GPON networks
- XGS{0}}PON infrastructure
- CATV optical kis systems
- DWDM thiab CWDM networks
- Ntev -haul singlemode links
- Siab -lub zog kho qhov muag
- Kev nkag mus rau Telecom thiab kev thauj mus los
Rau cov tes hauj lwm uas qhov kev poob rov qab yog qhov kev txiav txim siab tseem ceeb, APC connectors yog dav nyiam los txhawb kev ua haujlwm kho qhov muag ruaj khov thiab teeb pom kev ncaj ncees.
Qhov tseeb tso qhov poob thiab rov qab poob qhov tseem ceeb yuav tsum tau lees paub los ntawm lub Hoobkas kuaj cov ntaub ntawv thiab cov khoom specifications.
G657.A2 Khoov-Insensitive Fiber rau FTTH thiab High-Density Cable
Cov pigtail no yog tsim los siv G657.A2 khoov-sensitive singlemode fiber.
Piv nrog rau cov qauv singlemode fiber ntau, G657.A2 yog tsim los tswj kev kho qhov muag kom zoo dua hauv kev teeb tsa uas cuam tshuam nrog lub zog khoov radii thiab txwv qhov chaw routing.
Cov txiaj ntsig zoo xws li:
- Haum rau FTTH poob kev sib txuas
- Txhim kho kev hloov pauv hauv cov thawv ntim khoom fiber ntau
- Txo txoj kev pheej hmoo ntawm khoov -induced attenuation
- Yooj yim routing nyob rau hauv cov neeg coob coob telecom txee
- Kev tswj cov kab hluav taws xob zoo dua nyob rau hauv qhov chaw siab - ntom ntom
Yam xwm txheej xa tawm muaj xws li:
- FTTH cov neeg siv khoom sib txuas
- Fiber faib hubs
- Kev tsim kho kab mob qaum
- Telecom nkag mus network
- Sab hauv tsev optical routing systems
Simplex Kev Tsim Kho rau Tib Fiber Termination
Cov qauv siv yooj yim muaj ib qho fiber ntau kho qhov muag thiab feem ntau yog siv rau ib qho - txoj kev sib txuas kho qhov muag, fiber ntau splicing tej yaam num, thiab network terminations.
Cov ntawv thov ib txwm muaj xws li:
- Fiber cable termination
- Kev koom ua ke ODF
- Fiber davhlau ya nyob twg thawv
- FTTH faib cov ntsiab lus
- Kev sib txuas ntawm cov khoom siv telecom
Nws txoj kev tsim kho kom yooj yim txhim kho thiab tswj fiber ntau.
LSZH Jacket rau kev nyab xeeb sab hauv tsev
Cov kab hluav taws xob siv LSZH (Low Smoke Zero Halogen) lub tsho sab nrauv tsim rau kev siv sab hauv tsev uas muaj kev nyab xeeb hluav taws thiab txo cov pa luam yeeb yog qhov tseem ceeb.
Ib puag ncig kev teeb tsa ib txwm muaj xws li:
- Cov chav sib txuas lus
- Cov chaw zov me nyuam
- Cov tsev lag luam
- FTTH sab hauv tsev routing
- Public infrastructure chaw
- High -ntaus fiber ntau faib tshuab
Thaum muaj hluav taws kub, LSZH cov ntaub ntawv feem ntau tsim cov pa luam yeeb thiab corrosive tsawg dua li cov pa PVC tsho, pab txhim kho kev nyab xeeb rau cov neeg ua haujlwm thiab cov khoom siv.
Lub tsho daj sab nrauv ua raws li kev lag luam cov lus pom zoo rau kev txheeb xyuas kev sib txuas ntawm singlemode fiber ntau, ua kom yooj yim rau kev teeb tsa, kev saib xyuas, thiab kev daws teeb meem.
Technical Specifications
| Parameter | Specification |
|---|---|
| Khoom npe | E2000 / APC SM G657.A2 Simplex LSZH Yellow Fiber Optic Pigtail |
| Yam khoom | Fiber Optic Pigtail |
| Hom Connector | E2000 |
| Connector Polish | APC (8℃Angled Physical Contact) |
| Fiber hom | Singlemode (SM) |
| Fiber Standard | ITU-T G.657.A2 Khoov-Insensitive Fiber |
| Fiber tub ntxhais / Cladding | 9/125μm |
| Kev tsim kho kab | Simplex |
| Cable Diameter | 0.9 hli (Standard) |
| Jacket Khoom | LSZH (Low Smoke Zero Halogen) |
| Jacket Xim | Daj |
| Ua haujlwm Wavelength | 1310nm / 1550nm |
| Hom Insertion Poob | Tsawg dua lossis sib npaug li 0.30 dB |
| Qhov Kev Txhaum Txhaum Loj Tshaj Plaws | Tsawg dua lossis sib npaug li 0.50 dB |
| Hom Rov Los Loss | Ntau dua lossis sib npaug li 60 dB |
| Khoom siv Ferrule | Zirconia Ceramic |
| Fiber End Face Geometry | APC 8℃Angled Polish |
| Tensile zog | Ntau dua lossis sib npaug rau 5 N (0.9mm Pigtail) |
| Yam tsawg kawg nkaus Khoov Radius (Static) | 7.5mm ib |
| Yam tsawg kawg nkaus Khoov Radius (Dynamic) | 15 mm |
| Durability | Ntau dua lossis sib npaug rau 500 Mating Cycles |
| Ua haujlwm kub | -40℃rau +75 degree |
| Cia kub | -40℃rau +85 degree |
| txheeb ze humidity | 0% rau 95% RH |
| Nplaim ntsuas | IEC 60332 Ua raws li LSZH Jacket |
| Fiber Identification | Yellow Jacket rau Singlemode Fiber |
| Kev tiv thaiv Connector | Integrated Automatic Dust Shutter |
| Kev xeem zoo | 100% Insertion Poob Test |
| Xaus ntsej muag tshuaj xyuas | IEC 61300-3-35 Kev tshuaj xyuas muaj |
| Kev Ua Raws Cai | Daim ntawv no: IEC 61754, IEC 61755, IEC 61300, RoHS, REACH |
| Tej kev siv | FTTH, GPON, XGS-PON, CATV, DWDM, Telecom Networks |
| Ntim | Ib tus neeg Polybag lossis Custom Packaging Muaj |
| Customization Options | Cable Length, Labeling, Ntim, OEM Branding |
| Lub Tebchaws Keeb Kwm | Tuam Tshoj |
| Chaw tsim tshuaj paus | FOCC ™ |
Optical Performance
| Yam khoom | Tus nqi |
|---|---|
| Insertion Loss (IL) | Tsawg dua lossis sib npaug li 0.30 dB |
| Qhov Kev Txhaum Txhaum Loj Tshaj Plaws | Tsawg dua lossis sib npaug li 0.50 dB |
| Rov Los Loss (RL) | Ntau dua lossis sib npaug li 60 dB |
| Rov ua dua | Tsawg dua lossis sib npaug li 0.20 dB |
| Hloov pauv tau | Tsawg dua lossis sib npaug li 0.20 dB |
| Ua haujlwm Wavelength | 1310nm / 1550nm |
| Hom Fiber | ITU-T G.657.A2 |
| Connector kawg ntsej muag | APC 8 degree |
