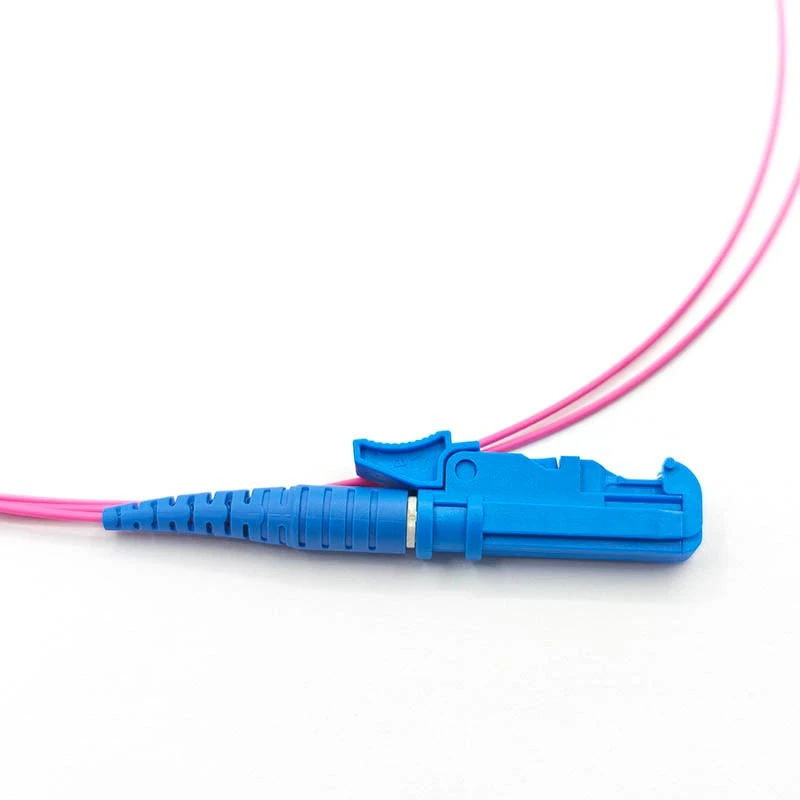

Qhov no E2000 UPC OM4 simplex LSZH violet 0.9 hli fiber ntau optic pigtail (1 meter) yog tsim nyob rau hauv nruj Hoobkas - tswj cov txheej txheem thiab precision kawg - ntsej muag polishing qauv. Nws yog tsim tshwj xeeb los ua kom tau raws li qhov ultra-tso qis qis qhov yuav tsum tau ua ntawm siab-kev sib txuas ceev sib txuas, suav nrog 10GbE, 40GbE, 100GbE, thiab 400GbE daim ntawv thov.
Txhawm rau muab cov neeg siv khoom lag luam nrog kev ntseeg siab siab tshaj plaws thiab ntev - lub sijhawm ua haujlwm kev ntseeg siab, FOCC muaj txog li 15-xyoo kev lees paub zoo thiab 4-teev cov lus teb ceev ceev rau cov khoom lag luam no.
E2000 UPC Connector Mechanical thiab Optical Design Architecture
E2000 connector (tseem hu ua LSH connector nyob rau hauv tej yam thoob ntiaj teb specifications) yog tsim thiab tsim nyob rau hauv tag nrho ua raws li IEC 61754-15 thiab TIA-604-16 thoob ntiaj teb cov qauv.Its mechanical locking mechanism siv lub laub-rub bayonet removing-style kev sib tsoo thiab kev sib tsoo disconnection tshwm sim los ntawm lateral rub quab yuam los yog kev co nyob rau hauv high-density cabling ib puag ncig.
Cov tub ntxhais kho qhov muag ntawm E2000 connector yog siab -precision 1.25 hli zirconia ceramic ferrule. FOCC siv cov cuab yeej ua haujlwm siab tshaj plaws (ACA), siv cov titanium inserts los ua kom cov tub ntxhais muaj fiber ntau nrog lub tshuab axis ntawm lub ferrule. Cov txheej txheem no txo qis eccentricity-vim qhov ntxig ntxig poob thiab ua kom muaj qhov ua tau zoo ntawm qhov muag.
Cov txheej txheem multimode polishing siv Ultra Physical Contact (UPC) polishing tshuab. Los ntawm nruj tswj ferrule kawg- ntsej muag geometry, suav nrog lub vojvoog ntawm curvature, apex offset, thiab fiber ntau protrusion/recession, lub connector ua tiav ib tug raug insertion poob ntawm tsawg dua los yog sib npaug rau 0.15 dB thiab ib tug rov qab poob ntawm ntau dua los yog sib npaug rau 35 dB.
Ib qho tshwj xeeb tshaj plaws ntawm E2000 connector yog nws lub caij nplooj ntoos hlav tsis siv neeg ua ke -loaded hlau shutter system. Thaum lub connector raug txiav, lub shutter cia li kaw thiab muab kev tiv thaiv dual:
- Kev Tiv Thaiv Kev Nyab Xeeb Laser:Thaum lub sijhawm ua haujlwm hauv lub network, lub kaw lus kaw tag nrho thaiv cov teeb meem tsis pom kev laser emissions los ntawm lub ntsej muag ferrule kawg, pab tiv thaiv kev teeb tsa thiab saib xyuas cov neeg ua haujlwm los ntawm kev raug mob rau lub hlwb.
- Plua plav thiab kev tiv thaiv kab mob:Lub kaw hlau kaw cais lub ntsej muag kawg ntawm lub ntsej muag los ntawm cov pa hauv huab cua, cov dej noo, thiab cov pa paug. Qhov no txo qis qhov kev pheej hmoo ntawm qhov kawg - ntsej muag sib kis thiab siab - lub zog hluav taws xob kho qhov muag, txhim kho lub sij hawm ntev - kev ntseeg siab ntawm lub network thiab txuas lub neej ntev.
Cov yam ntxwv ua tau zoo ntawm OM4 Multimode Fiber thiab 0.9 mm Semi -Tight Buffer
Cov khoom no siv laser- optimized OM4 graded-index multimode fiber ntau nrog tus qauv 50/125 μm core / cladding txoj kab uas hla, ua raws li ITU-T G.651 thiab ISO/IEC 11801 tus qauv.
OM4 fiber ntau yog tshwj xeeb ua kom zoo rau 850 nm Vertical-Cavity Surface-Emitting Laser (VCSEL) daim ntawv thov. Ntawm 850 nm, nws muab qhov zoo tshaj plaws Modal Bandwidth (EMB) ntawm ntau dua lossis sib npaug rau 4700 MHz · km, ua kom muaj kev sib kis mus txog:
- 550 meters ntawm 10 Gb / s Ethernet
- 150 meters ntawm 40 Gb / s thiab 100 Gb / s Ethernet qaum txuas
Cov fiber ntau muaj kev tiv thaiv los ntawm 0.9 hli (900 μm) semi-tight buffer txheej. Rau fusion-spling pigtail daim ntaub ntawv, qhov no semi- nruj tsis siv neeg muaj ob peb yam tseem ceeb thiab installation zoo.
Micro-Bending Stress Isolation
Lub semi-tight buffer tuav lub microscopic clearance ntawm cov txheej tsis thiab cov txheej fiber ntau. Qhov kev tsim no tiv thaiv sab nraud tensile, torsional, lossis thermal expansion stresses los ntawm kev xa ncaj qha mus rau cov fiber ntau optical, txo qhov kev pheej hmoo ntawm micro- dabtsi yog khoov poob.
Raws li qhov tshwm sim, cov fiber ntau tswj tau tshwj xeeb qis qis txawm tias thaum taug kev los ntawm cov khoom ntim nruj nreem, cov thawv ntim khoom, lossis cov ntaub ntawv kaw.
Simplified Fiber Npaj
Cov khoom semi-tight buffer pub rau cov kws tshaj lij kom strip txog li 100 hli ntawm cov txheej txheem tsis zoo siv tus qauv peb-qhov fiber ntau stripping cov cuab yeej yam tsis muaj kev puas tsuaj rau thawj txheej txheej.
Qhov no ua kom zoo dua qub splicing efficiency, txo lub sijhawm teeb tsa, thiab txo qhov kev pheej hmoo ntawm fiber ntau tawg thaum lub sijhawm ua haujlwm.
Heather Violet (Magenta) Jacket Identification
Raws li TIA-598-D fiber optic xim-coding tus qauv, Magenta (Heather Violet) yog cov xim xaiv rau OM4 multimode fiber ntau tshuab.
Cov xim coding no ua rau cov neeg ua haujlwm hauv network thiab cov kws tshaj lij kom paub qhov txawv ntawm OM4 siab -bandwidth infrastructure los ntawm OM3 aqua cabling thiab qub OM1 / OM2 txiv kab ntxwv systems, txo qhov kev pheej hmoo ntawm kev ua tsis raug thiab kev ua haujlwm hauv network degradation.
LSZH Jacket Material Science thiab Fire Safety Performance
Hauv ib puag ncig, siab - qhov chaw ntom ntom xws li cov chaw khaws ntaub ntawv, chav sib txuas lus, thiab cov chaw lag luam network, kev ua haujlwm hluav taws xob yog qhov kev xav txog kev nyab xeeb tseem ceeb.
Tsoos Polyvinyl Chloride (PVC) cov tsho tso tawm cov pa luam yeeb dub thiab cov tshuaj lom halogen- muaj cov pa roj thaum raug hluav taws kub lossis thermal decomposition. Thaum cov pa roj no cuam tshuam nrog cov dej noo hauv huab cua, lawv tsim cov kua qaub heev xws li hydrochloric acid (HCl), uas tuaj yeem ua rau cov khoom siv hluav taws xob puas tsuaj loj, cov khoom siv hlau sib txuas, thiab cov khoom siv hauv network, uas ua rau cov khoom siv tsis zoo thiab txuas ntxiv kev cuam tshuam.
Cov khoom no siv cov pa hluav taws xob qis qis qis Halogen (LSZH) cov nplaim hluav taws kub hnyiab- cov khoom siv lub tsho tiv thaiv thoob plaws hauv nws qhov kev tsim kho.
Nws cov hluav taws kub -tiv taus thiab qis- cov yam ntxwv toxicity yog ua tiav los ntawm kev sib koom ua ke ntawm kwv yees li 50% inorganic hlau hydroxide nplaim hluav taws- cov khoom siv retardant, feem ntau yog txhuas hydroxide (Al(OH)₃) lossis magnesium hydroxide (Mg(OH)₂).
Thaum raug hluav taws kub, cov tebchaw no tau txais cov tshuaj tiv thaiv endothermic dehydration:
2Al(OH)3 →Al2O3+3H2O↑2Al(OH)_3 \\rightarrow Al_2O_3 + 3H_2O \\uparrow2Al(OH)3 →Al2O3+3H2O↑
Cov tshuaj tiv thaiv no muab ntau yam hluav taws kub -txoj kev tiv thaiv:
- Absorbs thermal zog ntawm cov txheej txheem combustion.
- Lowers lub zos cable nto kub.
- Tso dej vapor uas dilutes ib puag ncig oxygen concentration.
- Ua ib qho kev tiv thaiv ceramic-zoo li txheej txheej ntawm cov kab hluav taws xob.
Ua ke, cov txheej txheem no ua rau cov nplaim taws qeeb qeeb thiab pab tiv thaiv hluav taws sib kis raws txoj hauv kev cable, txhim kho cov neeg ua haujlwm kev nyab xeeb, tiv thaiv cov txheej txheem tseem ceeb, thiab txhawb kev ua raws li cov ntaub ntawv niaj hnub hluav taws kub- kev nyab xeeb.
Vim li cas thiaj xaiv Peb E2000 OM4 Fiber Optic Pigtail?
Telecom-Qib Nrho Qhov Tsis Txaus
Tsim los rau siab -kev ua haujlwm kho qhov muag sib txuas, cov pigtail no muab cov txheej txheem kev tso tawm tsawg dua lossis sib npaug rau 0.20 dB, ua haujlwm zoo tshaj qhov kev lag luam nruab nrab ntawm 0.30 dB. Kev poob qis qis pab txhawb kev txuas hluav taws xob ntau tshaj plaws thiab ua kom ruaj khov, siab -bandwidth teeb liab kis tau tus mob thoob plaws hauv lub network tseem ceeb.
Siab -Kev ruaj ntseg E2000 Connector Design
Lub E2000 connector nta ib lub caij nplooj ntoos hlav sib xyaw ua ke-loaded hlau shutter uas tau kaw thaum txiav, tshem tawm qhov xav tau ntawm cov plua plav cais. Cov txheej txheem kev nyab xeeb siab tshaj no tiv thaiv cov neeg ua haujlwm thiab cov khoom siv kho qhov muag, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau lub hom phiaj - cov chav server tseem ceeb, cov khoom siv kho mob, kev tiv thaiv tes hauj lwm, thiab lwm qhov chaw uas xav tau cov qauv kev nyab xeeb nruj.
Laser{0}}Optimized OM4 Multimode Fiber
Nruab nrog hwm OM4 multimode fiber ntau, lub pigtail no txhawb nqa kev sib txuas lus network ceev txog 100 Gb / s. Nrog rau Qhov Zoo Tshaj Plaws Bandwidth (EMB) ntawm 4700 MHz ·km ntawm 850 nm, nws muab kev ua haujlwm zoo rau kev siab -cov ntaub ntawv ceev, chaw lag luam, thiab chaw cia khoom network (SAN) daim ntawv thov.
LSZH nplaim taws-Retardant Jacket
Lub tsho Low Smoke Zero Halogen (LSZH) lub tsho sab nrauv txhim kho kev nyab xeeb hauv ib puag ncig. Thaum muaj hluav taws kub los yog kub dhau heev lawm, lub cable tso pa tawm tsawg kawg nkaus thiab tsis muaj cov pa phem halogen. Nws ua raws li IEC 60332-1 cov kev xav tau ntawm nplaim taws thiab RoHS ib puag ncig cov qauv, pab tiv thaiv ob tus neeg ua haujlwm thiab cov khoom siv hluav taws xob rhiab heev.
Yooj yim-rau-Splice 0.9 mm Tight-Buffered Siv
Lub 0.9 hli nruj- buffered fiber ntau tsim muaj zoo heev stripping thiab tuav cov yam ntxwv, tso cai rau cov kws kho mob ua hauj lwm ceev, txhim khu kev qha fusion splicing nrog tsawg kawg nkaus ntawm fiber ntau puas. Qhov no ua rau nws yog ib qho kev daws teeb meem zoo tshaj plaws rau kev teeb tsa hauv cov thawv fiber ntau txiav, thaj vaj huam sib luag, cov khoom siv kho qhov muag (ODFs), thiab cov khoom sib txuas lus.
Cov ncauj lus qhia ntxaws ntxaws
Optical Performance Parameters
| Parameter | Tus nqi | Yam tsawg kawg nkaus Specification | Test Standard |
|---|---|---|---|
| Ua haujlwm Wavelength | 850 nm / 1300 nm | 850 nm / 1300 nm | IEC 61300-3-4: Tus Qauv Zauv |
| Insertion Loss (IL) | 0.12 dB | Tsawg dua lossis sib npaug li 0.30 dB | IEC 61300-3-4 Txoj Kev B |
| Rov Los Loss (RL) | Ntau dua lossis sib npaug li 40 dB | Ntau dua lossis sib npaug li 35 dB | IEC 61300-3-6 Txoj Kev B |
| OM4 Muaj txiaj ntsig Modal Bandwidth (EMB) | Ntau tshaj lossis sib npaug li 4700 MHz · km | Rated Tus nqi @ 850 nm | ISO / IEC 11801 Kev Tswj Xyuas Kev Lag Luam |
| Fiber Attenuation Coefficient | 850nm: Tsawg dua lossis sib npaug 2.3 dB / km1300 nm: Tsawg dua lossis sib npaug rau 0.6 dB / km | 850nm: Tsawg dua lossis sib npaug li 3.0 dB / km1300 nm: Tsawg dua lossis sib npaug rau 1.0 dB / km | IEC 60793: Ua |
Lub cev, Mechanical thiab Material Specifications
| Yam khoom | Specification | Daim ntawv pov thawj |
|---|---|---|
| Core / Cladding Diameter | 50 ± 2.5 μm / 125 ± 1.0 μm | IEC 60793-2-10: Cov |
| Ferrule Khoom & Diameter | Hwm Zirconia Ceramic Ferrule nrog Titanium Alloy Insert, Ø1.25 mm | Kev lag luam Standard |
| Ferrule Concentricity | Tsawg dua lossis sib npaug li 3.0 μm (Multimode) | Ua raws li IEC |
| Pigtail txheej kab | 0.9 ± 0.05 hli | Factory Standard |
| Jacket Xim | Heather Violet / Magenta | TIA-598-D |
| Jacket Khoom | Tsawg Smoke Zero Halogen (LSZH) Compound | IEC 60754-1 / 2, IEC 61034-1 / 2 |
| Nplaim Retardancy Rating | UL94 V-0 Kev tua tus kheej | UL94 ua |
| Txheem Length | 1.0 ± 0.05 m (Kev Cai Lengths Muaj) | Factory Standard |
| Tensile zog | Ntau dua lossis sib npaug li 70 N | IEC 61300-2-4: Tus Qauv Zauv |
| Yam tsawg kawg nkaus Khoov Radius | Static: Ntau dua lossis sib npaug li 10 hli (10D) Dynamic: Ntau dua lossis sib npaug li 20 hli (20D) | IEC 60793-1-47 Cov |
| Durability | Ntau dua lossis sib npaug rau 1,000 Mating CyclesTypical IL Hloov < 0.1 dB | IEC 61300-2-2: 2 |
Environmental Reliability Specifications
| Qeb xeem | Kev kuaj mob | Kev lees txais |
|---|---|---|
| Ua haujlwm kub | -40℃rau +85 degree | ΔIL Tsawg dua lossis sib npaug rau 0.20 dB thoob plaws qhov ntsuas kub tag nrho |
| Cia kub | -40℃rau +85 degree | ΔIL Tsawg dua lossis sib npaug rau 0.20 dB tom qab rov qab los |
| Damp Heat / Humidity Resistance | +75℃, 95% RH, 168 Teev | GR-326-CORE Ua raws, ΔIL Tsawg dua lossis sib npaug rau 0.20 dB |
| Thermal Cycling | -40℃rau +85 degree, 21 Cycles (168 Teev) | GR-326-CORE Ua raws, ΔIL Tsawg dua lossis sib npaug rau 0.20 dB |
| Ntsev Txau Corrosion Resistance | 5% Ntsev Fog Ib puag ncig, Ntau dua lossis sib npaug rau 48 Teev | IEC 61300-2-26 Ua raws, ΔIL Tsawg dua lossis sib npaug rau 0.20 dB |
Kev Ua Raws Cai
Qhov no E2000 UPC OM4 LSZH Fiber Optic Pigtail yog tsim thiab tsim raws li cov qauv hauv qab no:
- IEC 61754-15 (E2000 Connector Interface Standard)
- TIA-604-16 (FOCIS-16)
- IEC 61300 Series (Fiber Optic Interconnecting Devices Test Procedures)
- IEC 60793 Optical Fiber Specifications
- ISO / IEC 11801 Kev Txuas Hluav Taws Xob rau Cov Neeg Siv Khoom
- TIA-598-D (Fiber Optic Cable Xim Coding)
- IEC 60754 -1 / IEC 60754-2 (Halogen-Free Requirements)
- IEC 61034-1 / IEC 61034-2 (Kev ua haujlwm pa taws tsawg)
- UL94 V-0 (Flammability Classification)
- GR-326-CORE (Telcordia Reliability Requirements)
- RoHS Environmental Compliance
Cov lus nug nquag
1. Dab tsi ua rau E2000 connector muaj kev nyab xeeb dua li LC lossis SC connectors?
Lub E2000 connector nta ib lub caij nplooj ntoos hlav sib xyaw ua ke-loaded hlau shutter uas cia li kaw thaum lub connector yog unplugged. Qhov kev tsim no pab tiv thaiv kev raug mob rau qhov pom tsis pom lub teeb laser thaum tseem tiv thaiv lub ntsej muag ferrule kawg ntawm plua plav, noo noo, thiab kev sib kis. Yog li ntawd, lub connector muab kev ntseeg siab dua thiab kev saib xyuas qis dua hauv qhov chaw tseem ceeb hauv network.
2. Vim li cas thiaj xaiv E2000 connector rau siab -kev ua haujlwm kho qhov muag?
E2000 connectors muab kev ruaj ntseg kho qhov muag zoo, tsis tshua muaj qhov tsis zoo, thiab kev ua haujlwm zoo dua rov qab. Lawv lub qhov rooj tiv thaiv tsis siv neeg tuaj yeem pab tswj lub ntsej muag huv si thaum lub sijhawm, ua rau lawv zoo tagnrho rau kev sib tham hauv xov tooj, cov chaw khaws ntaub ntawv, kev sib txuas lus hauv kev tsheb ciav hlau, cov tub rog, thiab lwm yam haujlwm tseem ceeb- daim ntawv thov tseem ceeb.
3. Dab tsi yog qhov zoo ntawm OM4 multimode fiber ntau?
OM4 laser-optimized multimode fiber txhawb kev sib kis ceev mus txog 100G Ethernet thiab muab kev ua tau zoo modal bandwidth (EMB) ntawm 4700 MHz·km ntawm 850 nm. Nws ua rau kis tau tus mob mus txog 550 m rau 10G Ethernet thiab 150 m rau 40G / 100G Ethernet daim ntawv thov.
4. Vim li cas FOCC siv 0.9 hli semi- nruj buffered qauv?
