1 x 4 PLC Fiber Splitter, Splice / Pigtailed ABS Module,
2.0 hli, SC / UPC
KHOOM UA LI CAS
NTA

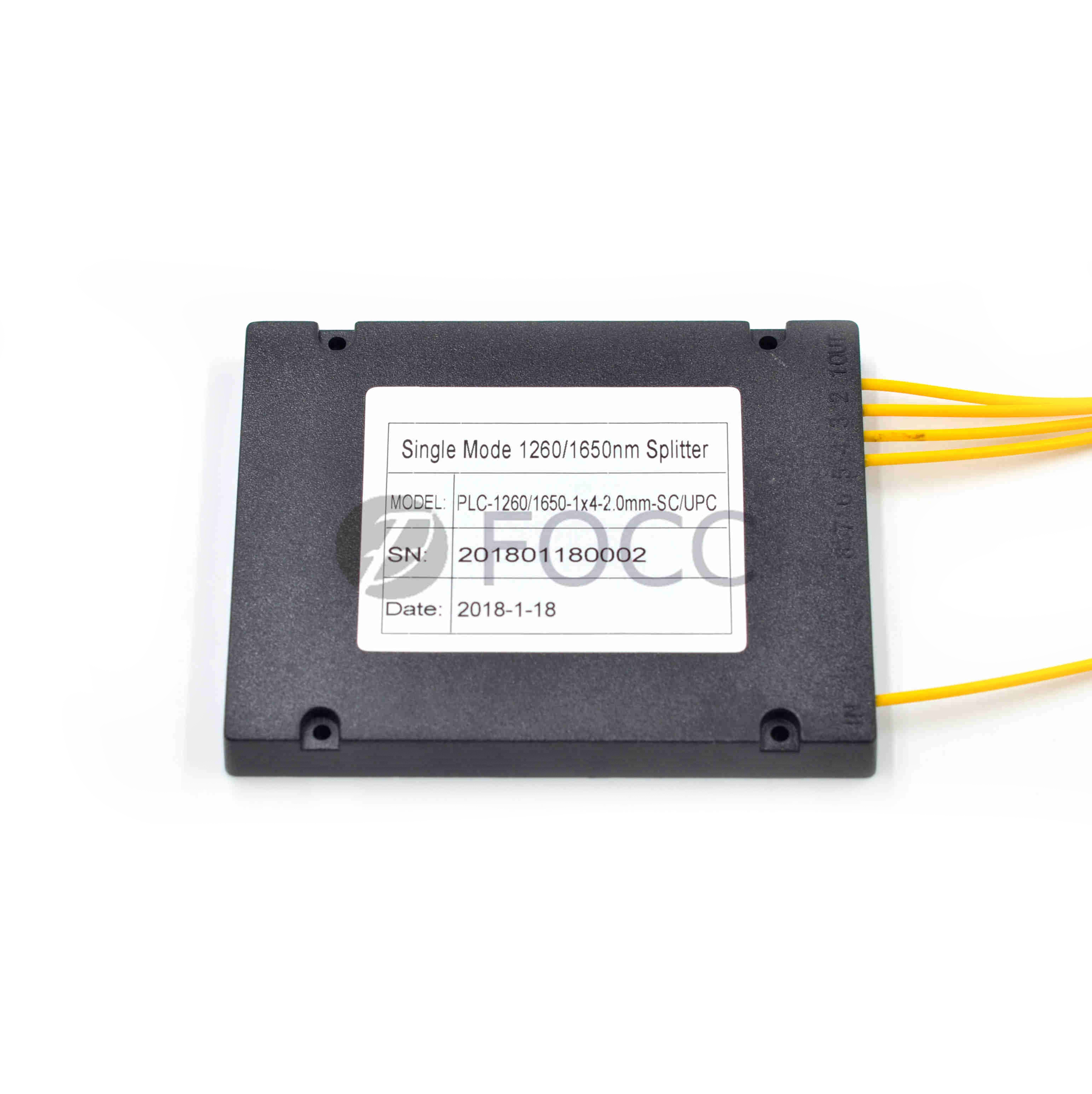

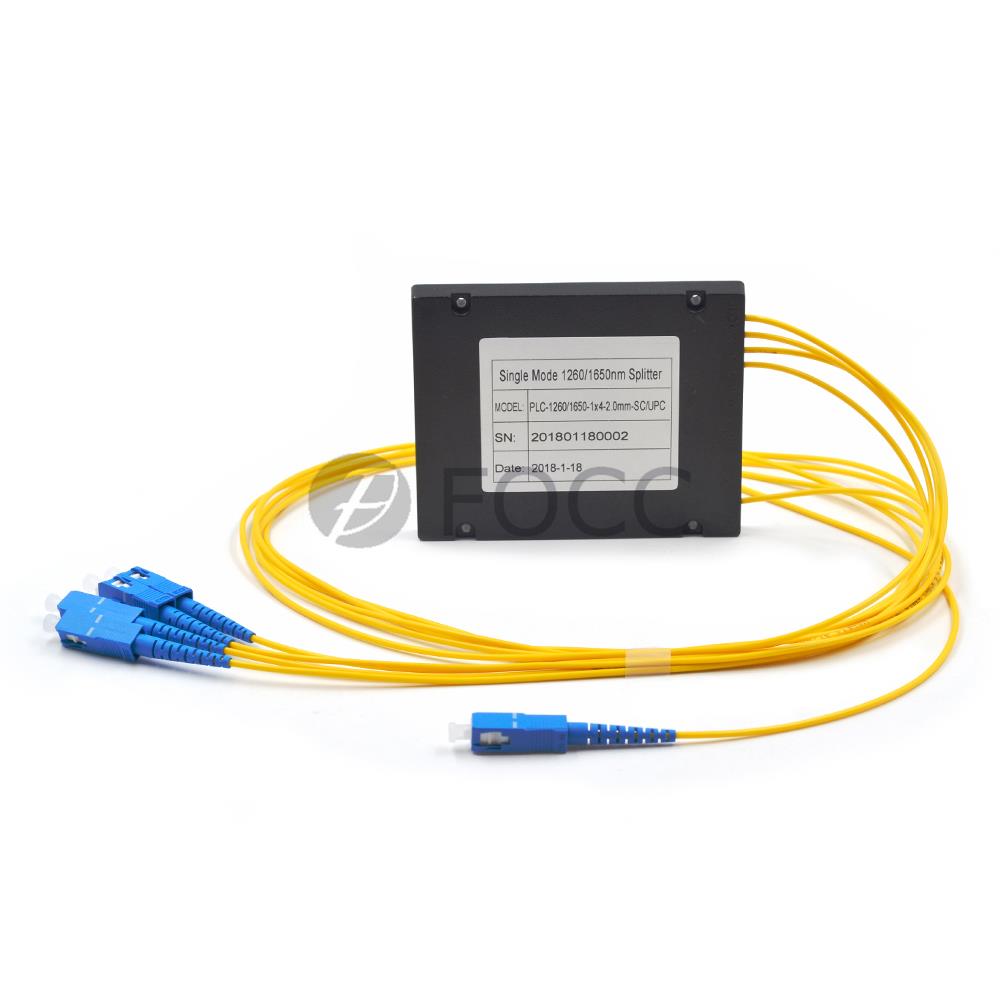

1 x 4 PLC Fiber Splitter, Splice / Pigtailed ABS Module, 2.0mm, SC / UPC
PLC Splitters yog siv los faib khoom kho qhov muag rau ntau qhov chaw rau kev ua haujlwm. Hauv kev kho qhov networks, nws yog feem ntau yuav tsum tau faib ib qho teeb meem kho qhov muag rau ntau qhov kev teeb tsa zoo tib yam, los yog los ua ke ntau cov teeb liab rau hauv ib qho teeb meem. PLC Splitter yog hom khoom siv fais fab kev lag luam uas tsim tau siv cov twj siv twj ywj ntsaws tshuab raj siv tshuab. Lawv tsim los rau FTTx hauv PON, CWDM, DWDM thiab kho qhov muag cable TV. Nws tseem yog lub luag hauj lwm los muab faib tawm cov khoom siv hluav taws xob los ntawm Chaw Ua Hauj Lwm Hauv Nruab Nrab (CO) mus rau ntau thaj chaw.
Kev paub meej
Pob Style | ABS Module | Configuration Yam | 1x 4 |
Fiber hom | Singlemode G.657A1 | Txuas Hom | S / C PC |
Fiber ntau | 2.0 hli | Fibre ntev | > 1m |
Insertion poob | ≤ 8.0 dB | Rov qab poob | ≥ 50dB |
Poob Uniformity | ≤ 0.6 dB | Ncaj Ncees | ≥5 0 dB |
Ncov Qaum Taws Xeeb (Polarization) | ≤0. 2 dB | Kub Ntsuas Kev Tawm | ≤0.5dB |
Wavelength tsis muaj mob | ≤0.3dB | Kev Pabcuam Bandwidth | 1260 ~ 1650nm |
Kev Kub Kev Kub Lub Cev | -40 ~ 85 ° C | Cia Kub | -40 ~ 85 ° C |
Khoom Highlights
Blockless PLC Splitter
v CATV network
v LAN, WAN thiab txiv neej
v Sib tw equipments
v Fiber optic sib txuas lus
v FTTX access network raws li lub qauv PON
v Kev tshwj xeeb kev ruaj ntseg thiab kev ruaj ntseg
v Kev Wavelength Kev Wide
v Kub Kev Kub Lub Cev
v Cov ntawv thov xaiv yooj yim
Zoo meej cov ntsiab lus ntawm 1X4 AB S PLC Splitter
Qauv thiab Ntev
Nrog cov qauv ntawm cov khoom siv sab nrauv, cov tswv yim kom meej meej thiab fiber ntau nkag, ABS PLC splitter yuav siv tau cov khoom siv ziab.

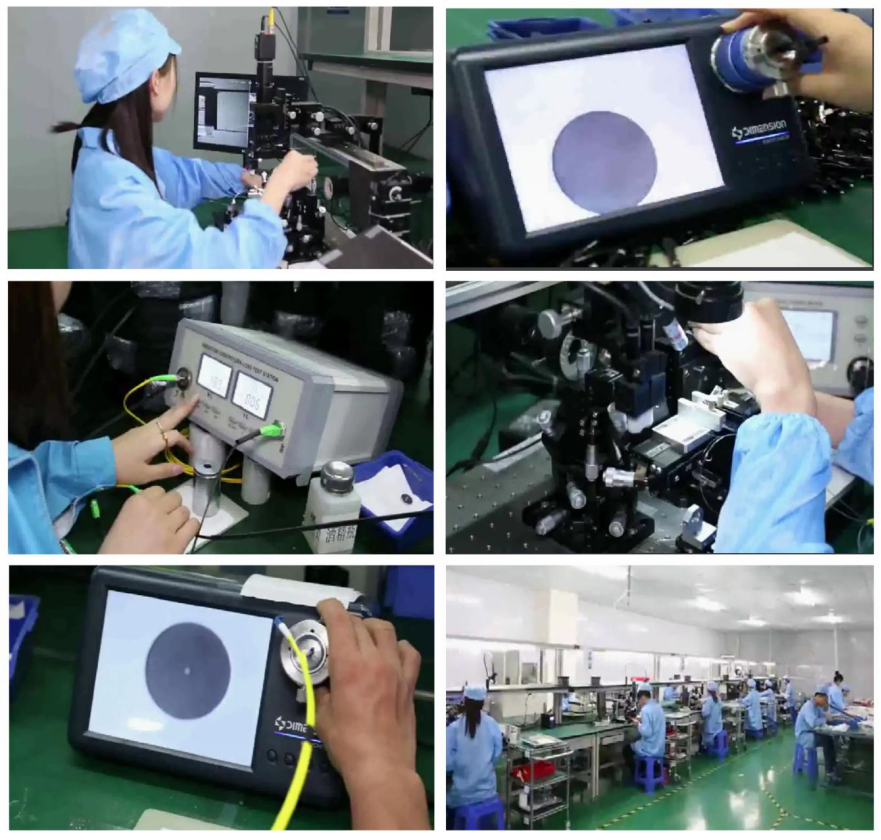

Khoom zoo tswj
FOCC them nyiaj rau qhov kev ua tau zoo ntawm txhua qhov khoom. Txhua yam khoom uas peb muab yog tsim tawm thiab kuaj xyuas kom paub meej tias nws ua tau zoo. Nyob rau hauv qhov chaw xeem, txawm tias nws yog ib qho kev sib tw los yog cov khoom siv kev ntsuas siab, peb nruj tswj hwm txhua txhua yam thiab siv zog los muab cov neeg tuaj muag nrog cov khoom zoo tshaj plaws.
Cov lus nug nquag nug
1.Qhov tus nqi
Feem ntau peb pom hauv 24 xuab moos tom qab peb paub meej tias cov ntaub ntawv qhia txog koj cov khoom. Yog tias koj mob heev kom tau tus nqi, thov hu rau peb los yog qhia peb hauv koj tus email kom peb thiaj li yuav suav koj qhov tseem ceeb tshaj plaws.
2. Txog qhov zoo?
Tom qab tus nqi cog lus, koj tuaj yeem yuav tau rau kev kuaj seb puas pom peb zoo.
3.Qhov txais lub sij hawm ntawm qhov qauv?
Tom qab kev cog lus ntawm koj daim ntawv txiav txim, tus qauv yuav tiav rau 7 ~ 10 hnub. thiab cov qauv yuav xa rau koj ntawm kev tshaj tawm thiab tuaj txog hauv 3-5 hnub ua hauj lwm.
4.Koj puas yog koj muab cov khoom OEM nyob hauv peb hom?
Tau, peb yog lub chaw tsim tshuaj paus, tab sis peb tuaj yeem txais kev pab OEM nrog OEM pob, koj tsuas yog xav tau xa peb cov ntsiab lus kom ntxaws.
